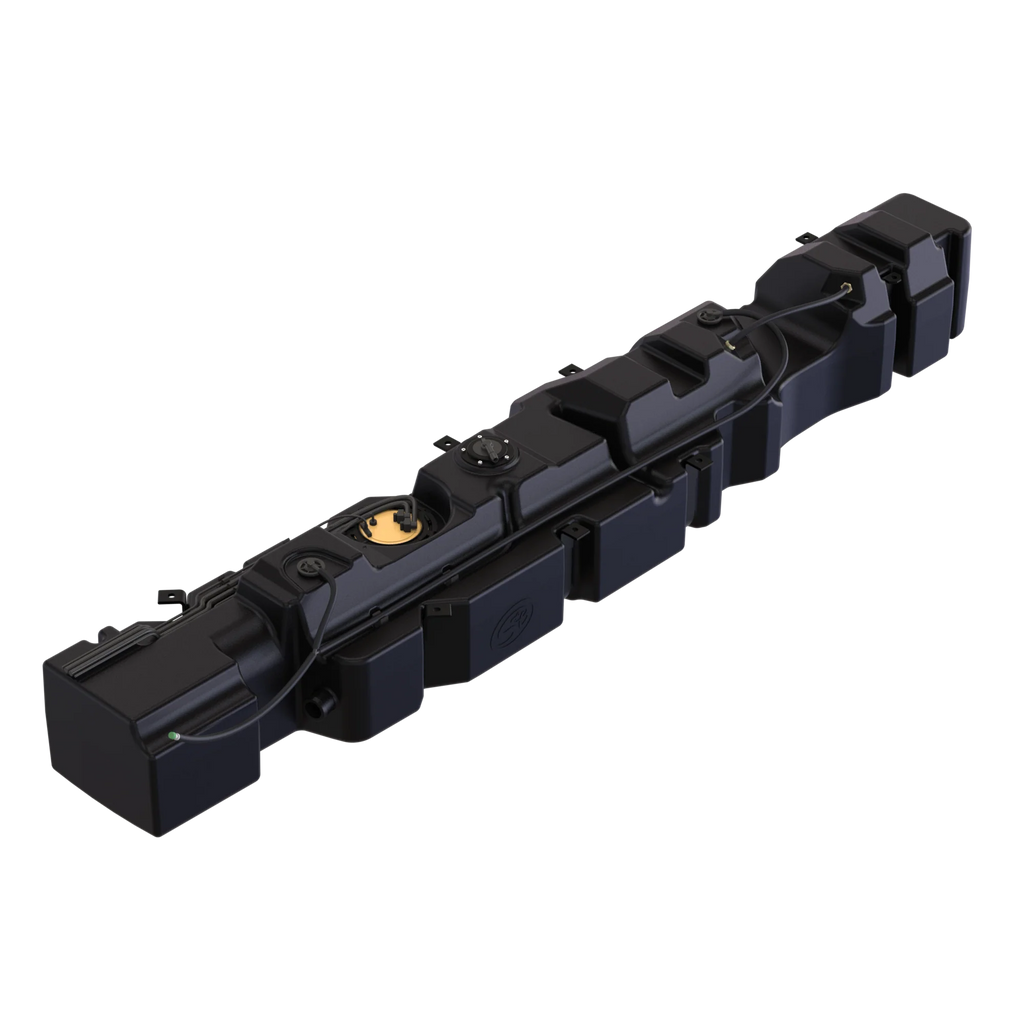

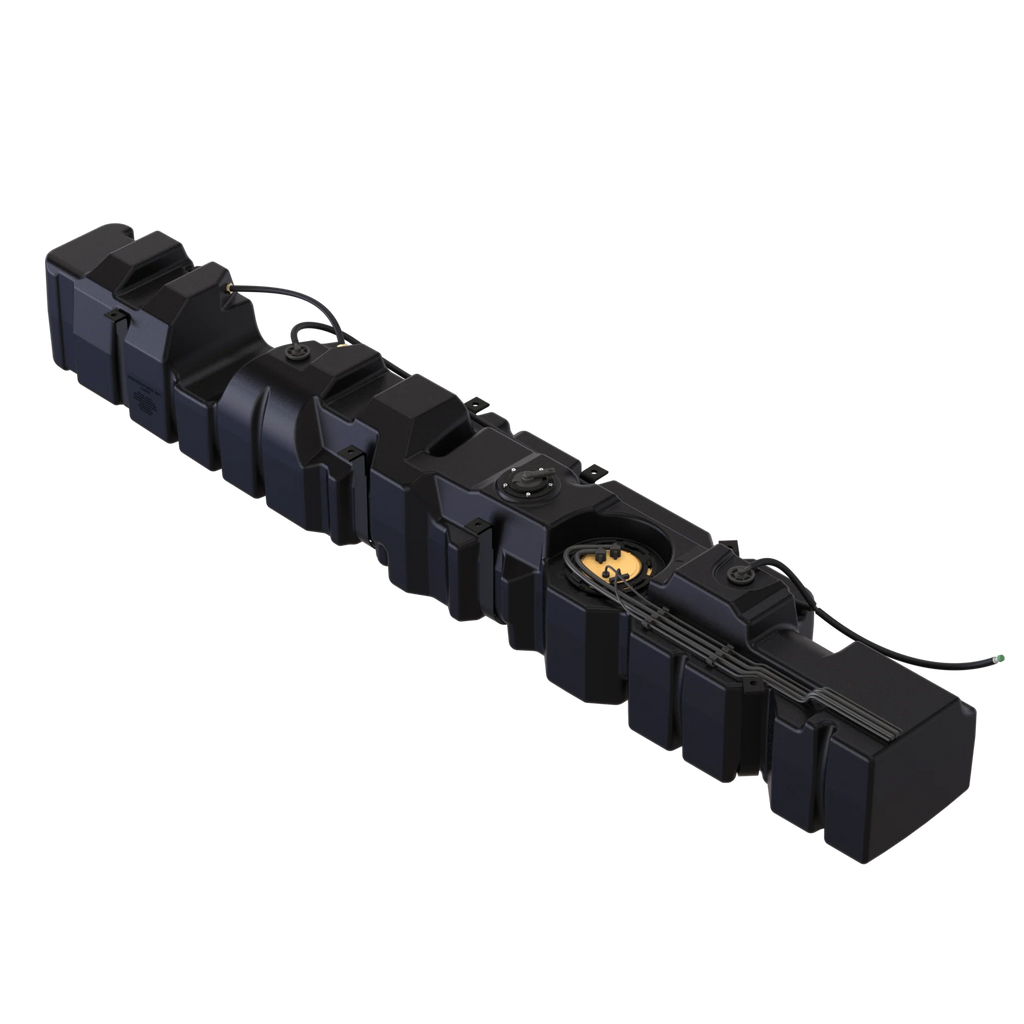

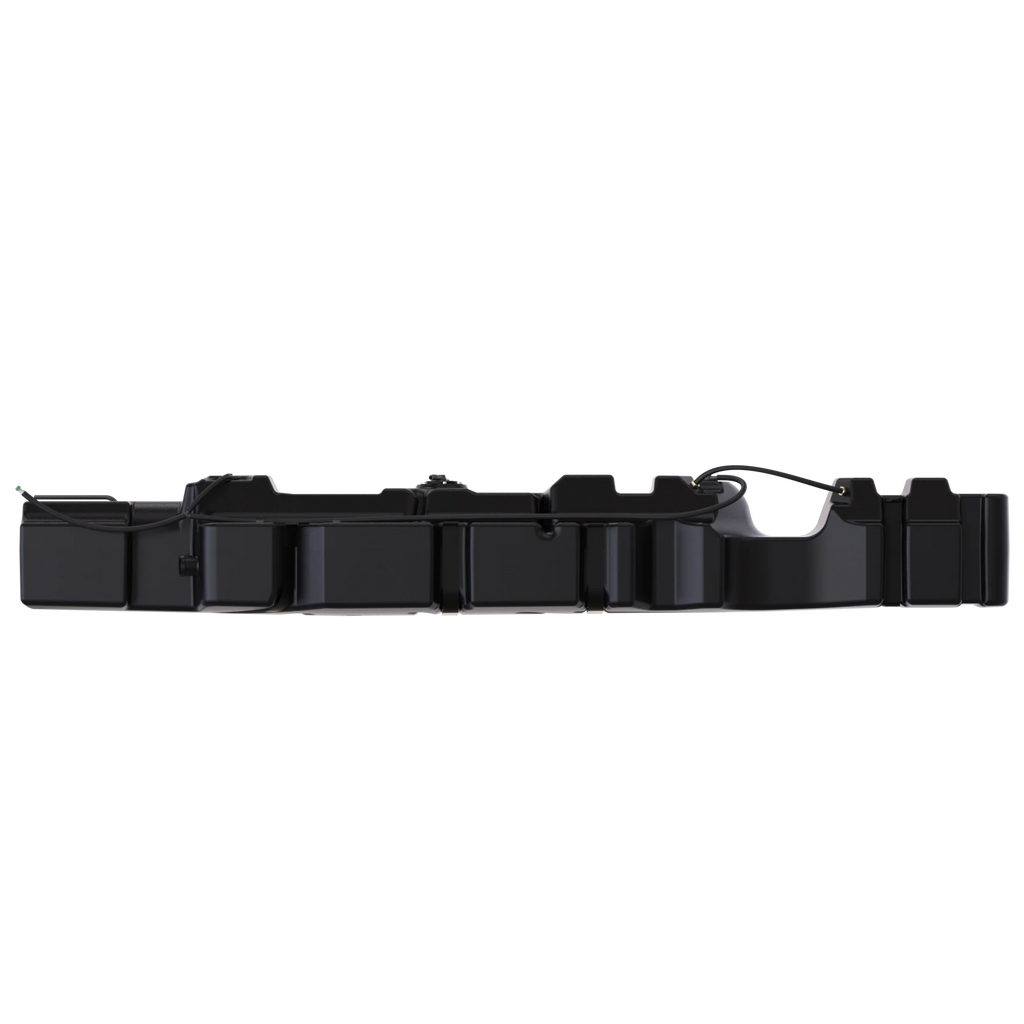

S&B 47 Gallon Replacement Fuel Tank for 2019-2022 Mercedes Sprinter 144 170
$3,437.50
Shipping calculated at checkout.
SKU:
E-HW-SB-FT47-S19+
Copied!
Pickup available at 6165 BC-17A #400, Delta, BC V4K 5B8
Usually ready in 4 hours
This tank will NOT fit:
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
Part # 10-1027 is a shorter 40 gallon tank and will work for all the above.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
| Dimensions | 98.28" X 15.41" X 14.17" |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 47 Gallons |
| Tank type | Midship |
| Weight dry | 45lbs |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2020-2024 | Winnebago | Navion | 3.0L, Diesel |
| 2020-2024 | Winnebago | View | 3.0L, Diesel |
| 2022-2023 | Winnebago | Adventure Wagon 70 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2021-2023 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2022-2023 | Pleasure-Way | Rekon 4x4 | 3.0L, Diesel |
