TEC SPECS
|
Model |
2000R |
|
Input Voltage |
DC12V/24V/48V |
|
Operating Current |
20-60A/10-33A/5-18A |
|
Cooling Capacity |
8000/9000/10000BTU |
|
Air Flow Rate |
250 CFM |
|
Rated Power |
650W/750W/850W |
|
Refrigerant |
R134a 750g |
|
Power Consumption |
Eco mode: 250-300W Turbo mode: 400-650W |
|
Noise Level |
Eco mode: 45dB Boost mode:58dB |
|
Roof Unit Dimension |
W31.5”*L31.5”*H7.1” |
|
Inner Unit Dimension |
W13.8”*L11”*H4.3” |
|
Weight |
66lb |
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware

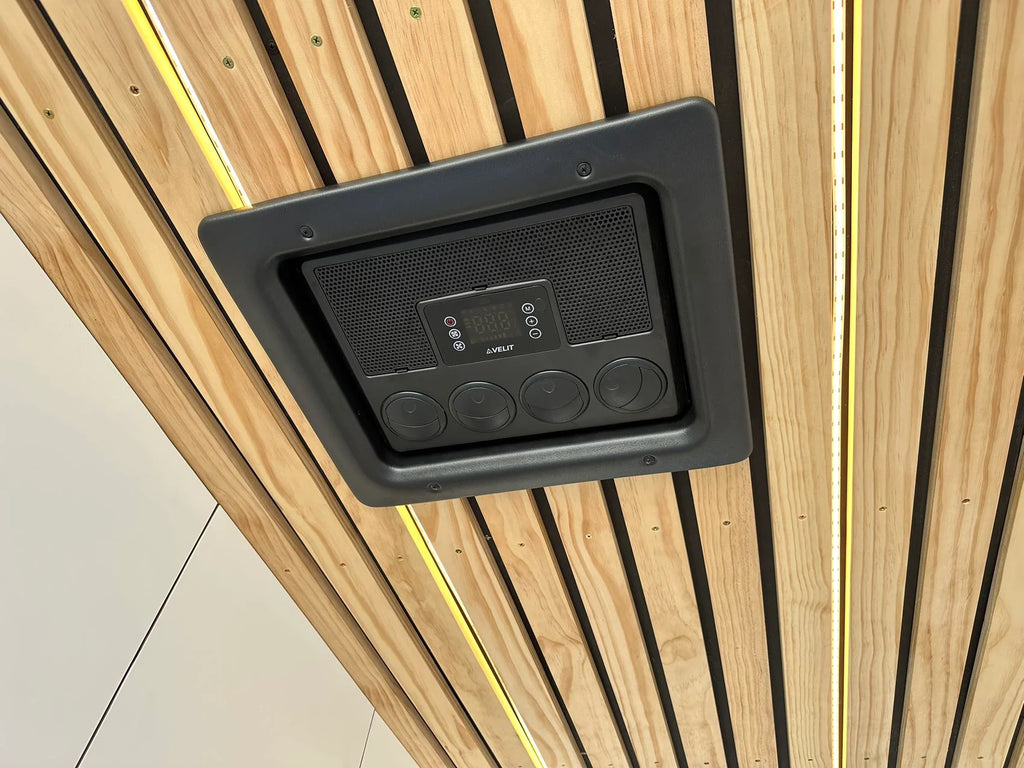

- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (6AWG for 12V, 8AWG for 24V)
- User manual
* One-year limited warranty

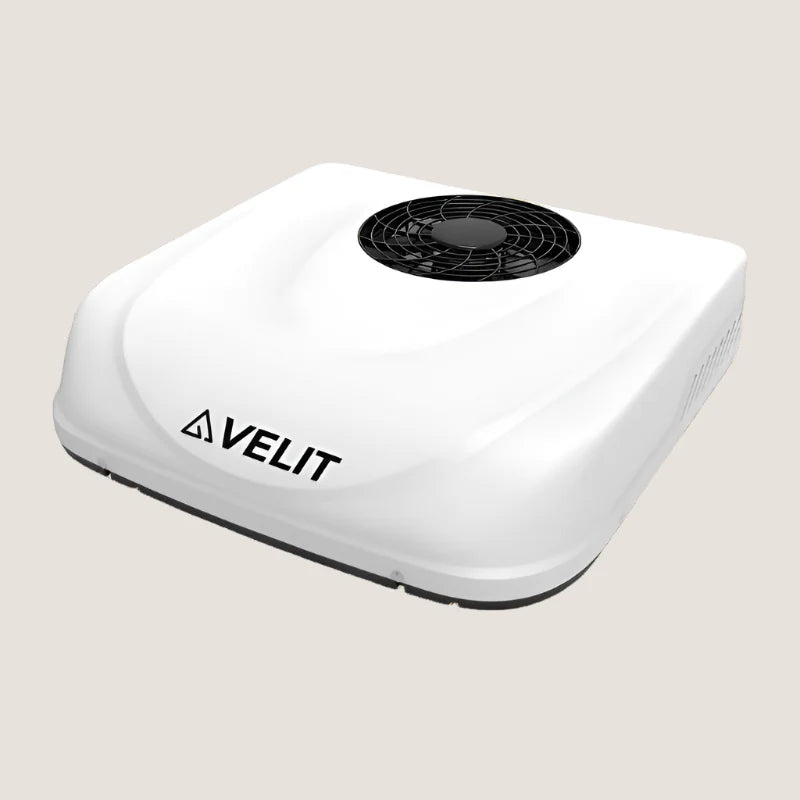

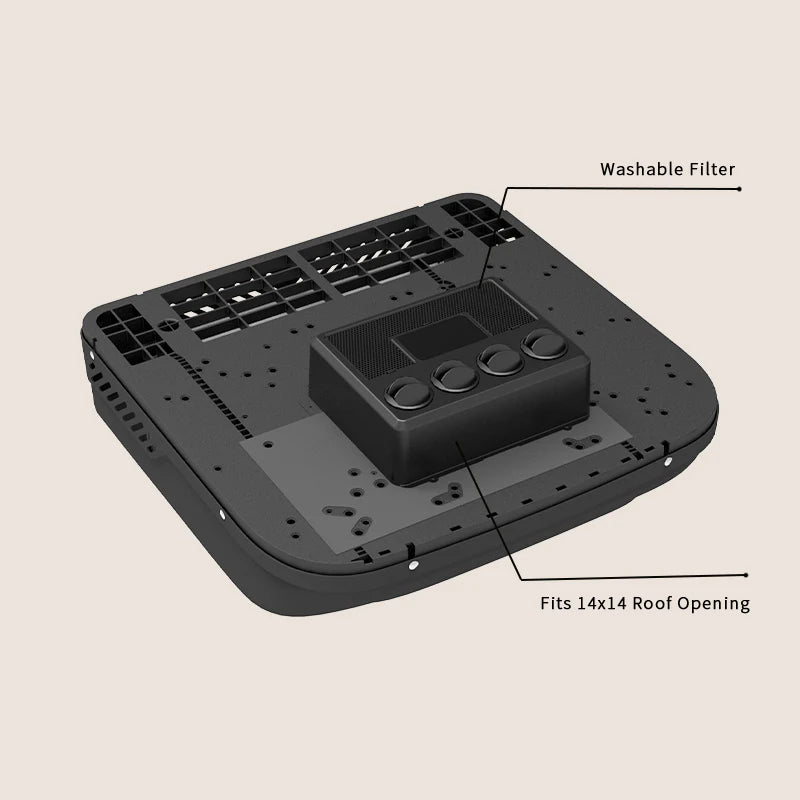

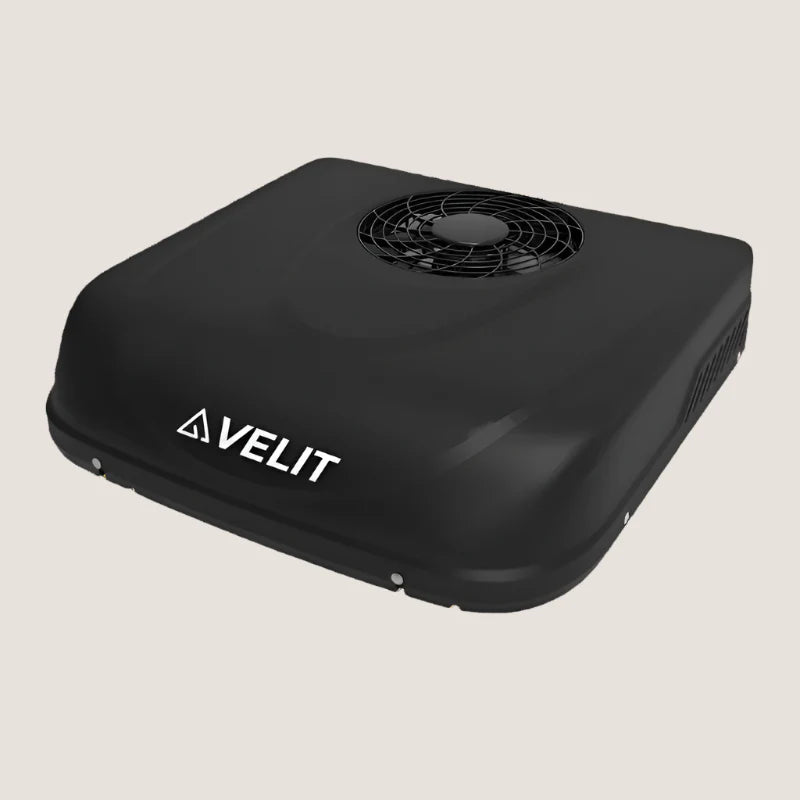

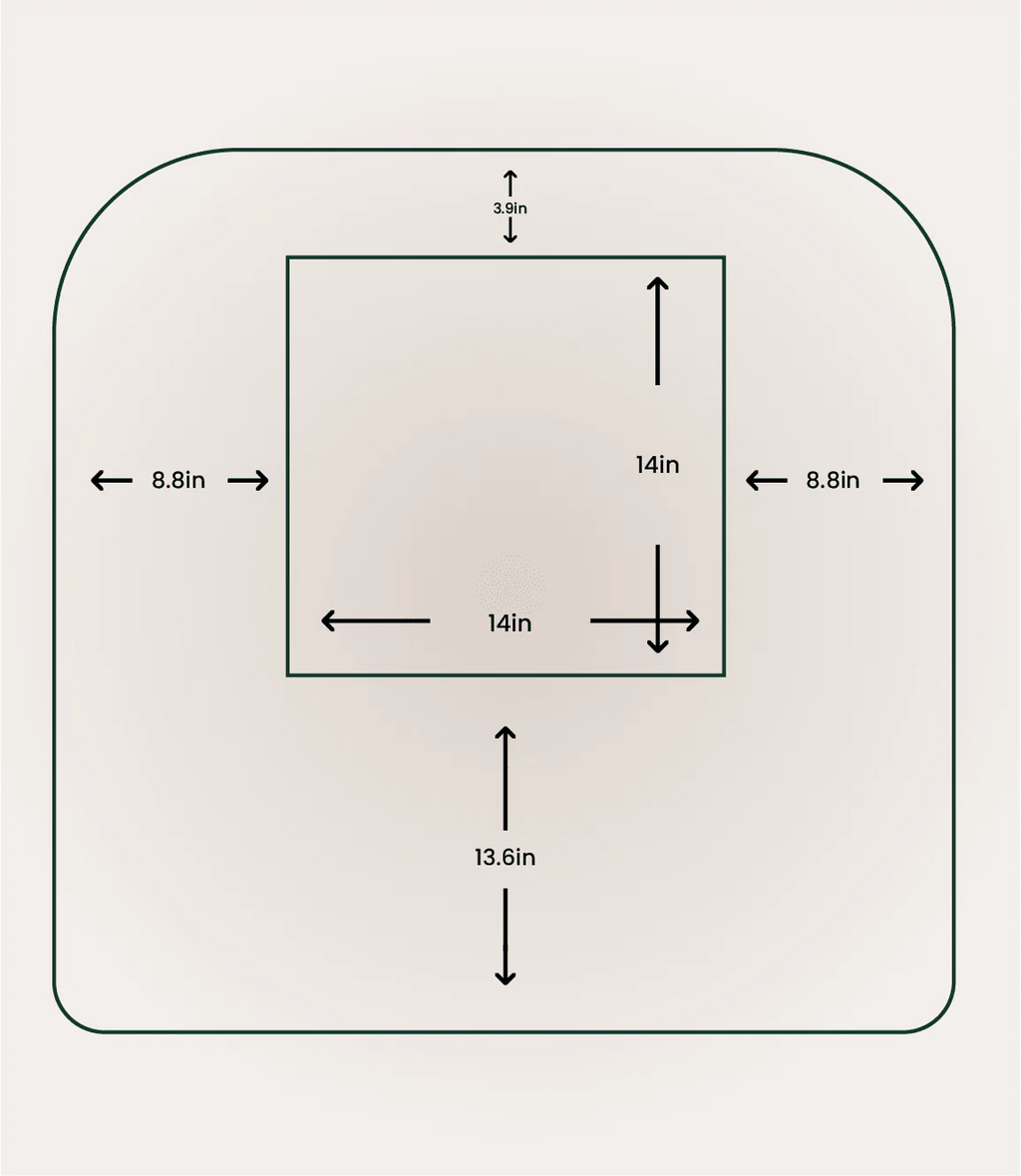

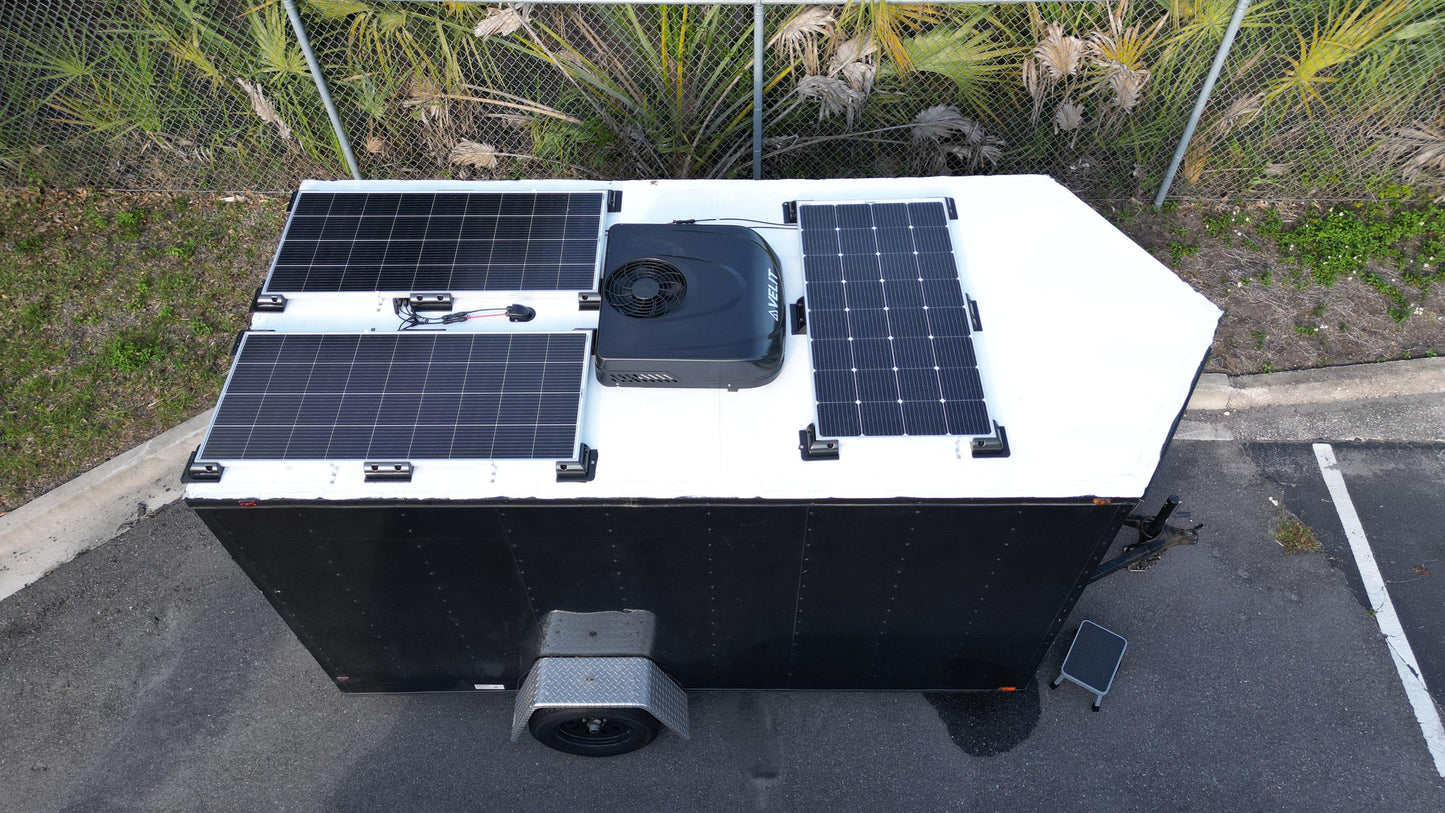

This super-efficient DC-powered rooftop air conditioner is designed from the ground up to maximize the comfort of your outdoor adventure. With the DC-powered twin-cylinder rotor compressor, Velit 2000R draws as low as 20A (at 12V) and is able to deliver fresh cool air to you at up to 126F for an extended period of time without needing a giant inverter which is required for traditional RV ACs. It also has a slim profile with only 7” of clearance and can easily fit in the standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
