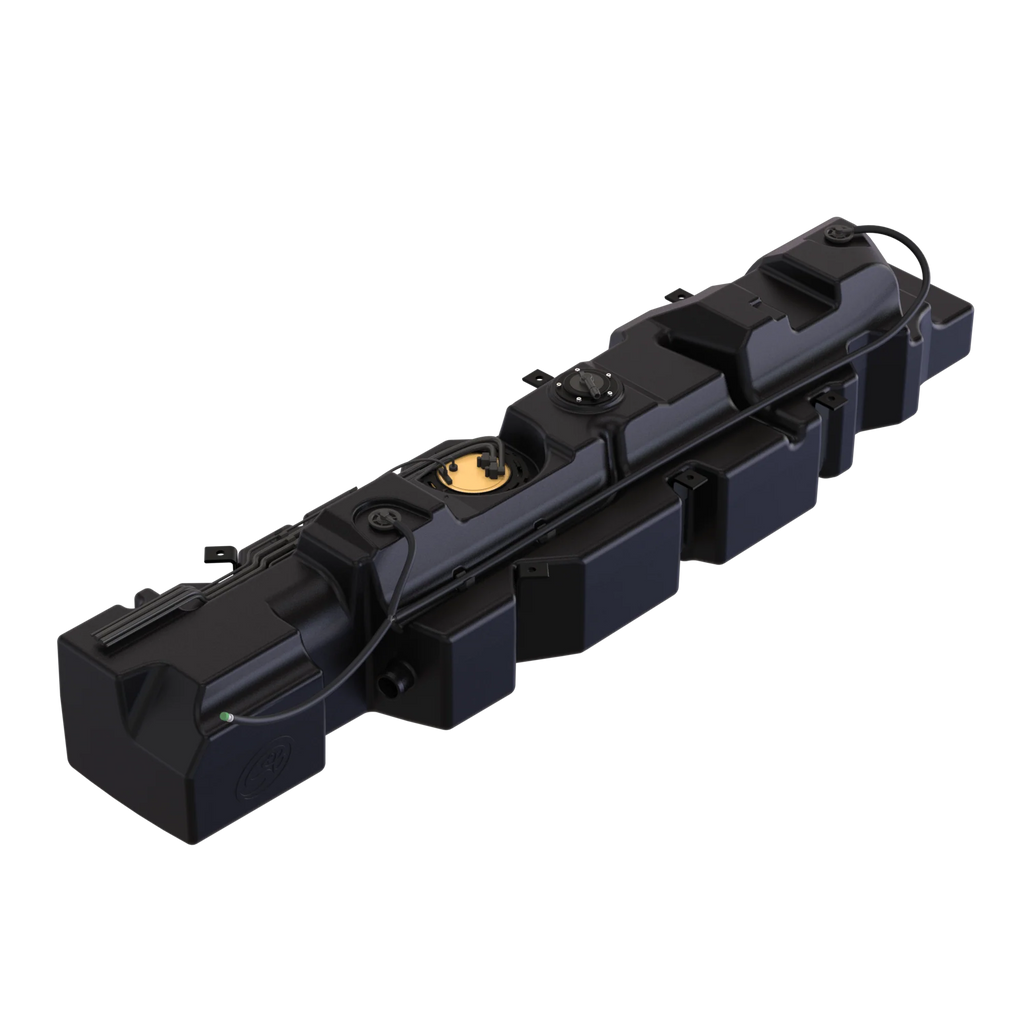

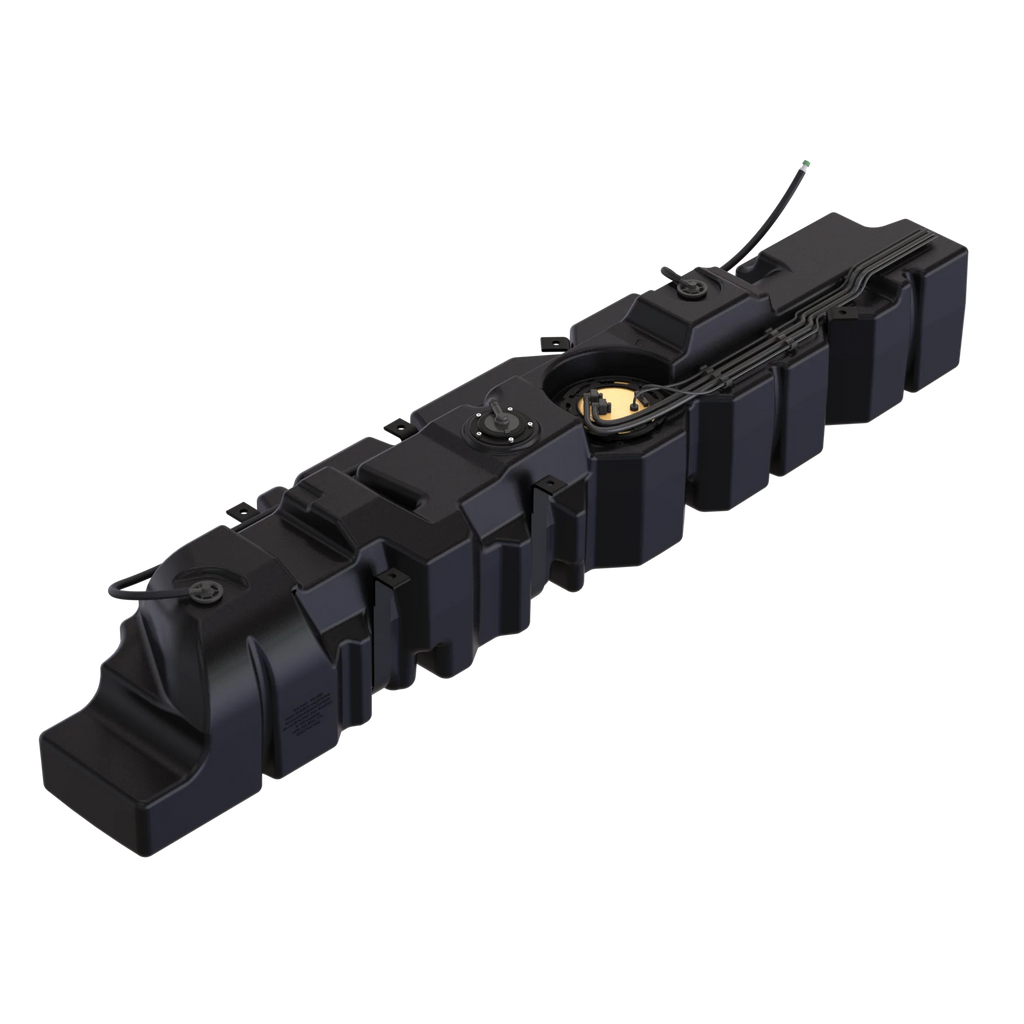

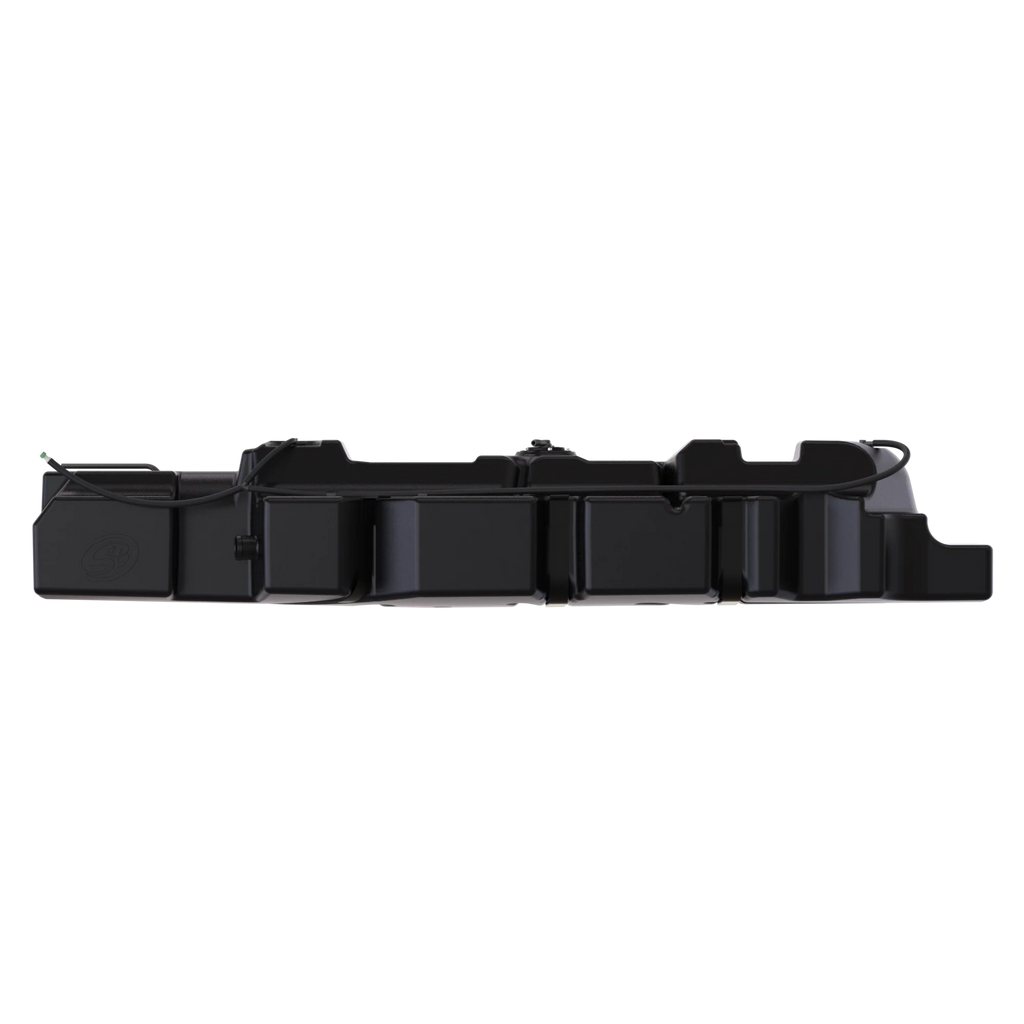

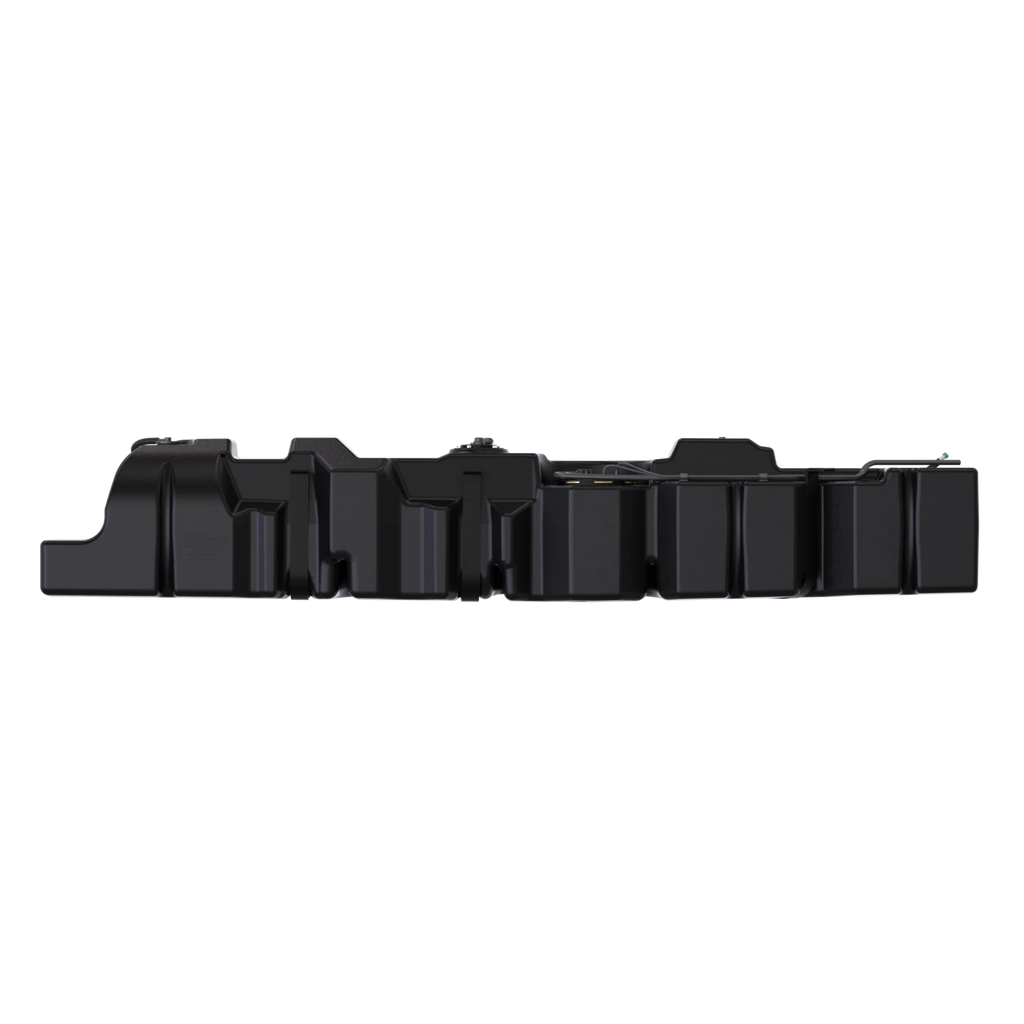

40 Gallon Replacement Fuel Tank for 2019-2024 4WD Chassis Winnebago Revel, 2022-2023 Entegra Launch and more.
$0.00
Shipping calculated at checkout.
SKU:
E-HW-T-FTR-S19+
Copied!
Deliveries cannot be made to P.O. Boxes.
Fits 170" & 144" Crew Vans, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2020+ Revels with AGM and Lithium batteries and any builds that have plumbing or interference behind the original fuel tank. Click here for more info. Fits Airstream 24x w/ slight adjustment, see the video here.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
| Dimensions | 79.91 x 15.94 x 14.18 |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 40 Gallons |
| Tank type | Midship |
| Weight dry | 37lbs |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2024 | Winnebago | Revel (4WD Chassis) | 3.0L, Diesel |
| 2024 | Thor | Tranquility | 3.0L, Diesel |
| 2024 | Thor | Sanctuary | 3.0L, Diesel |
| 2022-2023 | Jayco | Terrain | 3.0L, Diesel |
| 2022-2023 | Entegra | Launch | 3.0L, Diesel |
| 2020-2024 | Grech | Turismo | 3.0L, Diesel |
