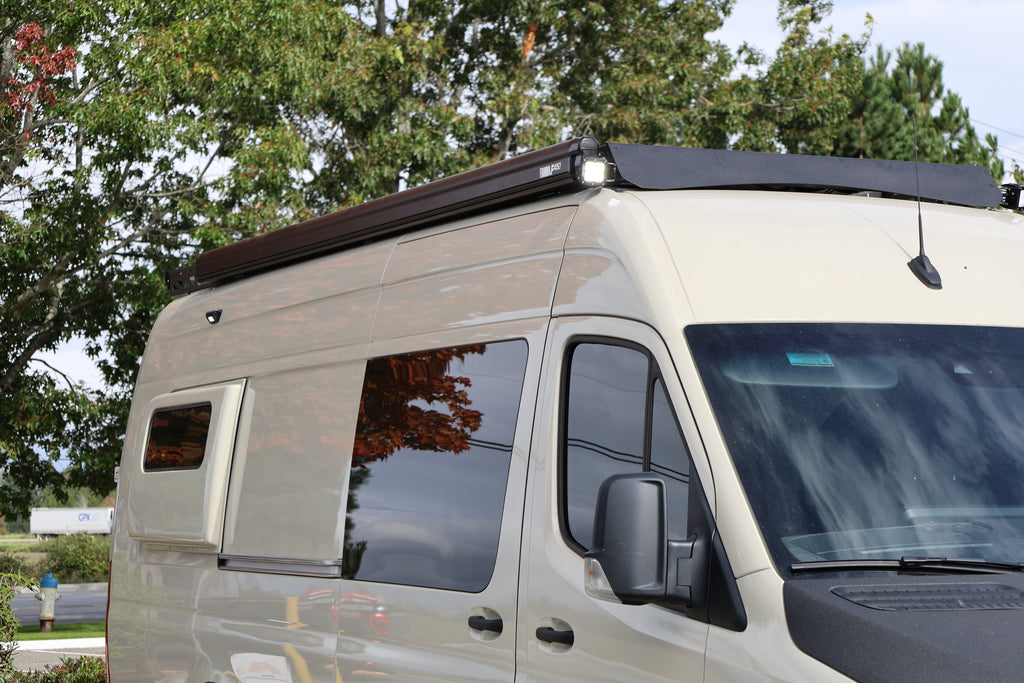

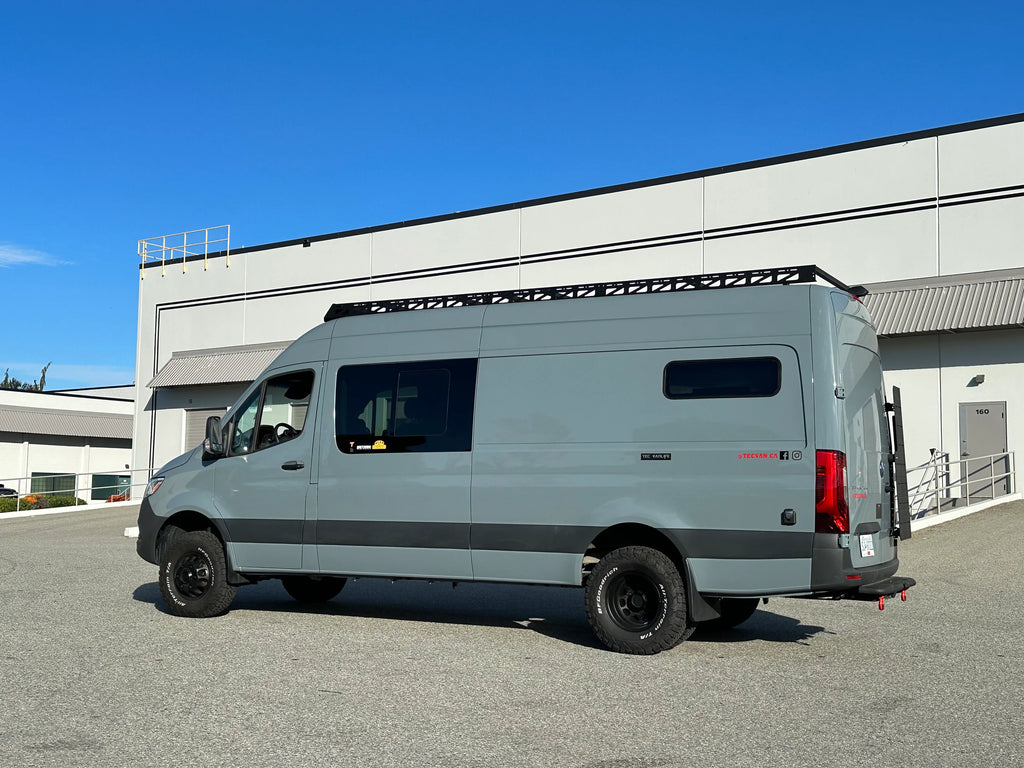

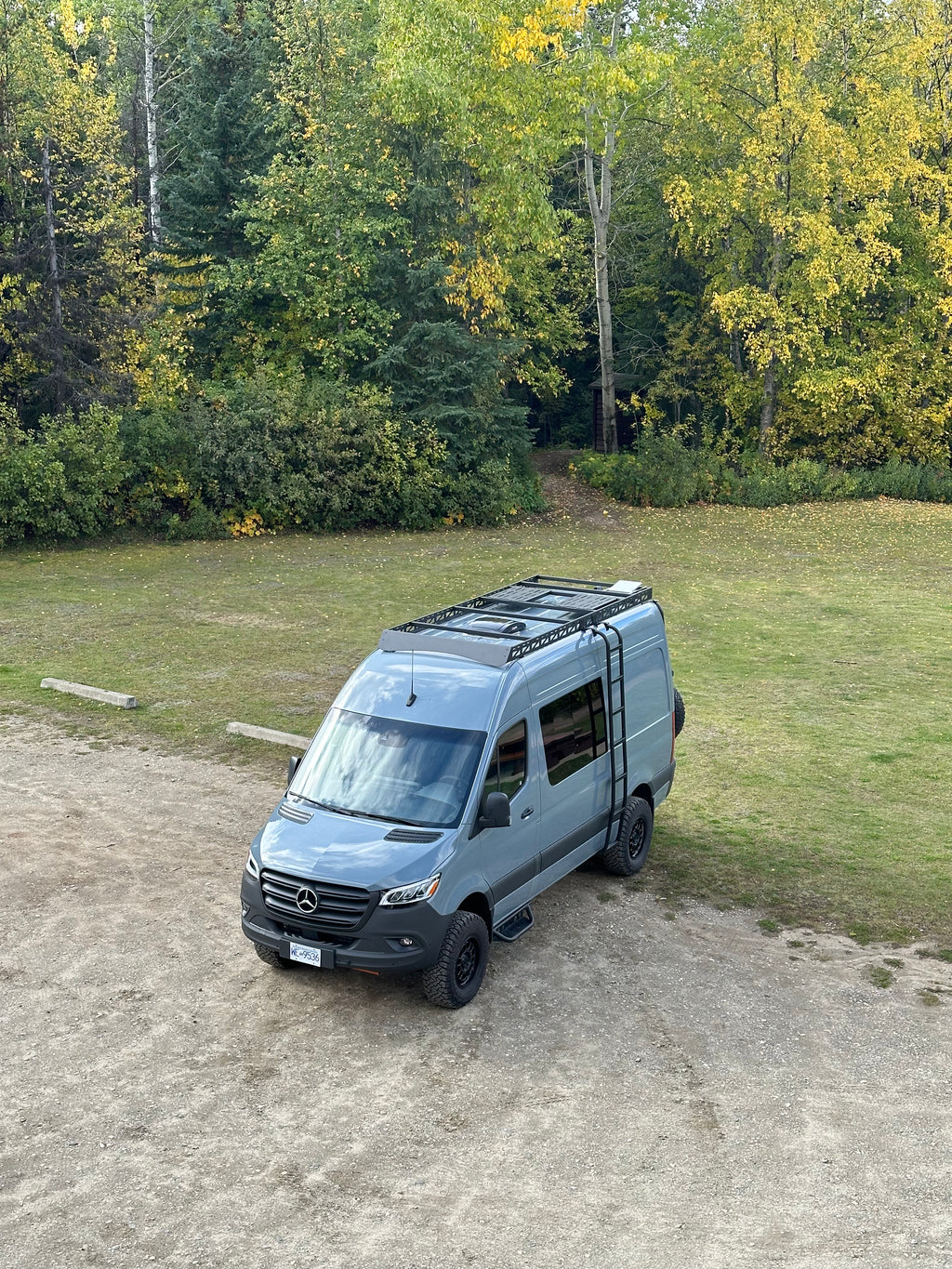

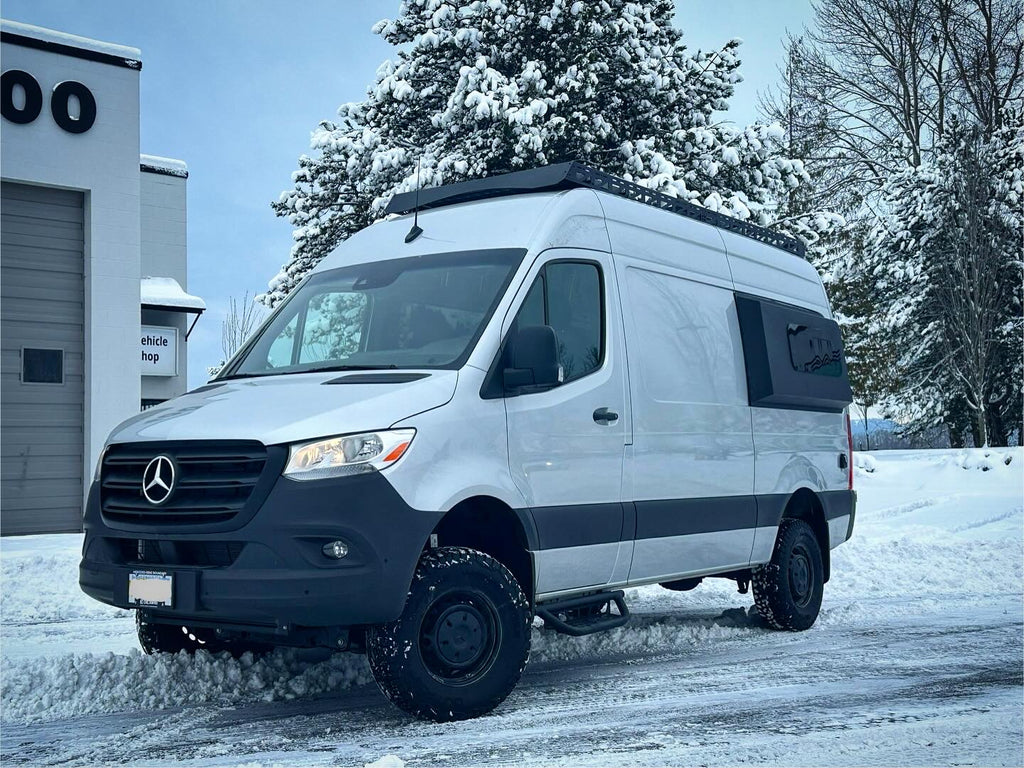

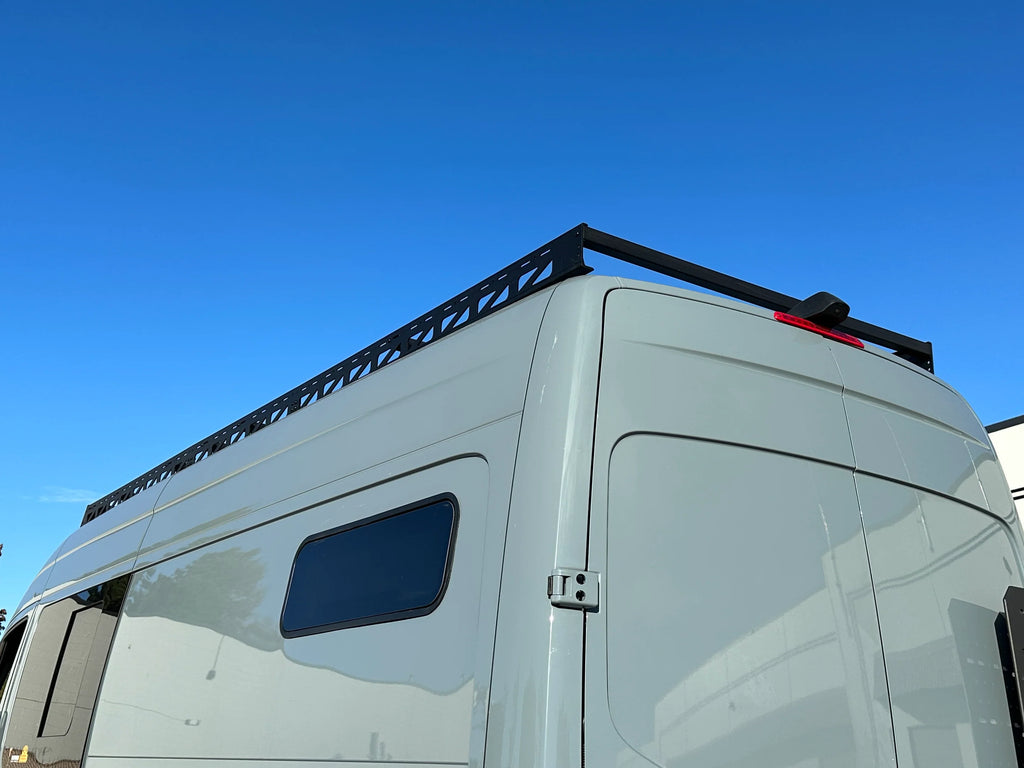

Sprinter Roof Rack - Modular

Sprinter Roof Rack - Modular

SKU:E-RR-T-SP-144

Style
Regular price $1,699.00 CAD
Regular price $1,499.00 CAD Sale price $1,699.00 CAD
Sale Sold out
Shipping calculated at checkout.

-FREE Shipping to Lower 48s & 🇨🇦.

-In Stock

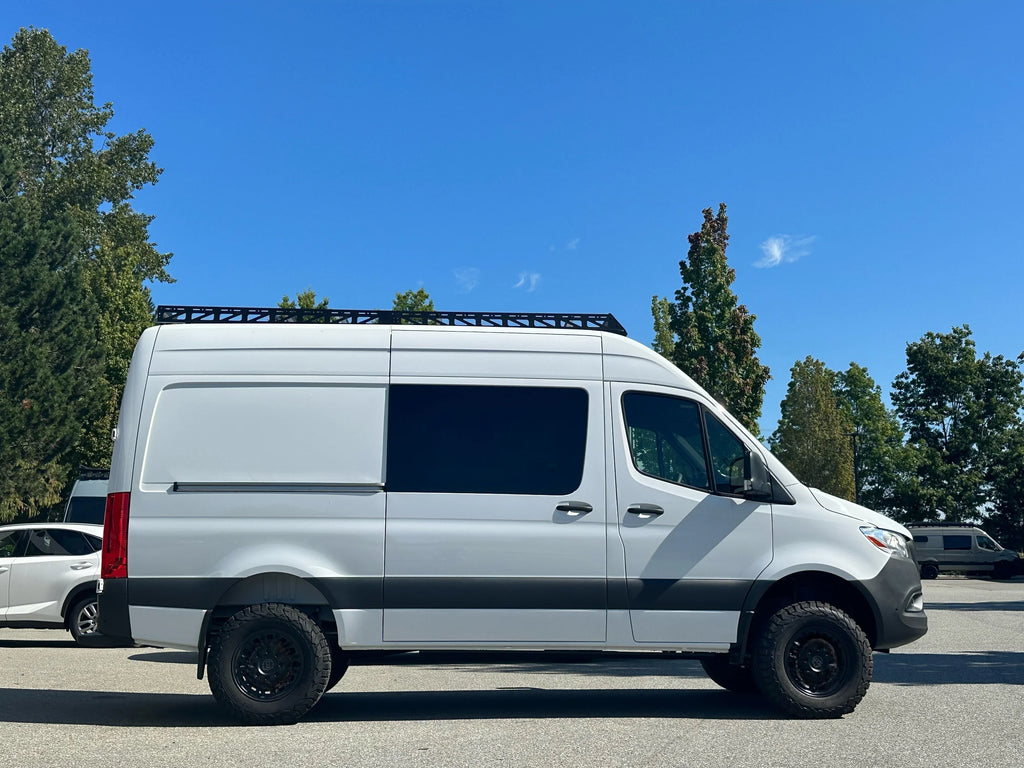

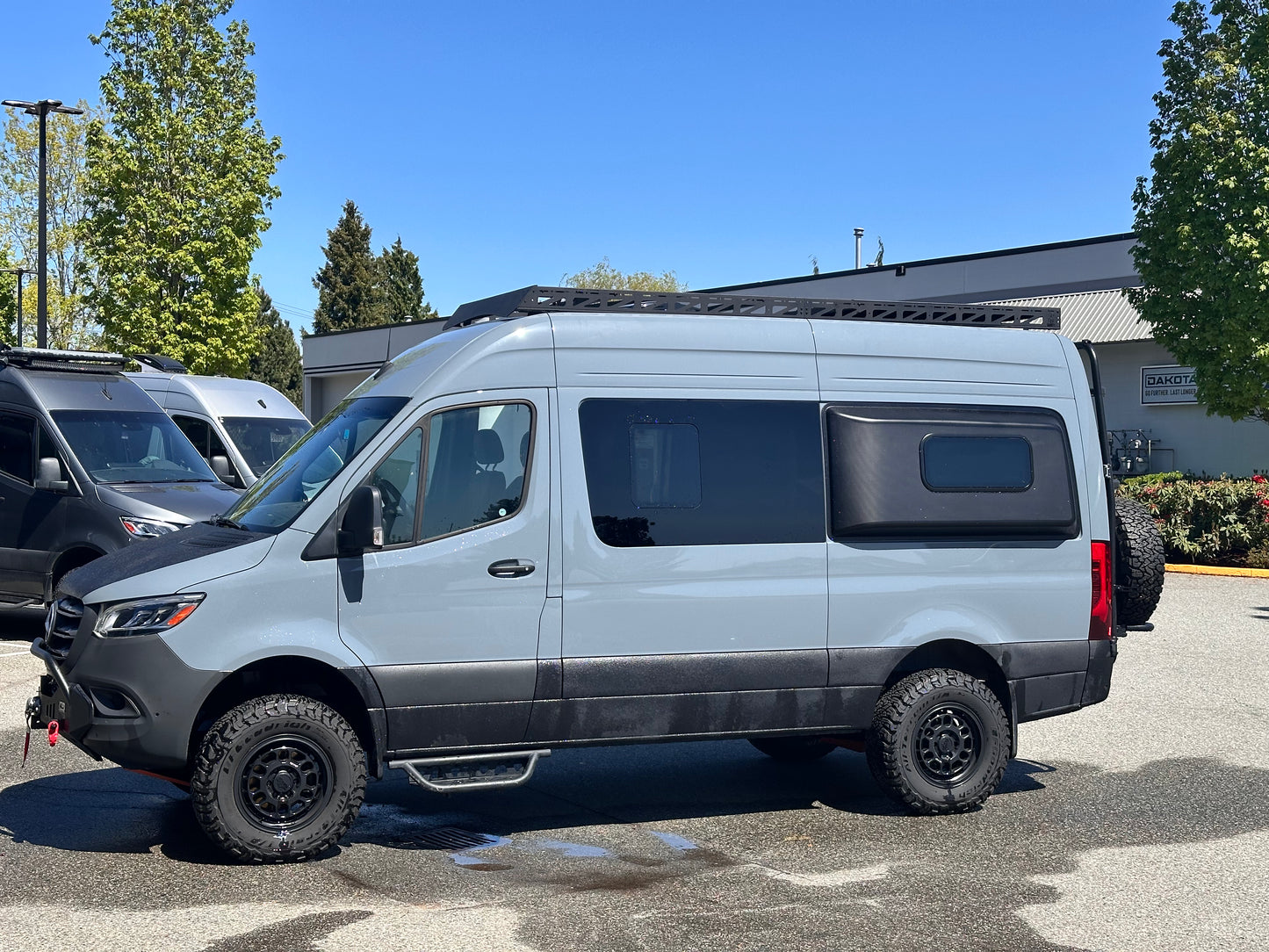

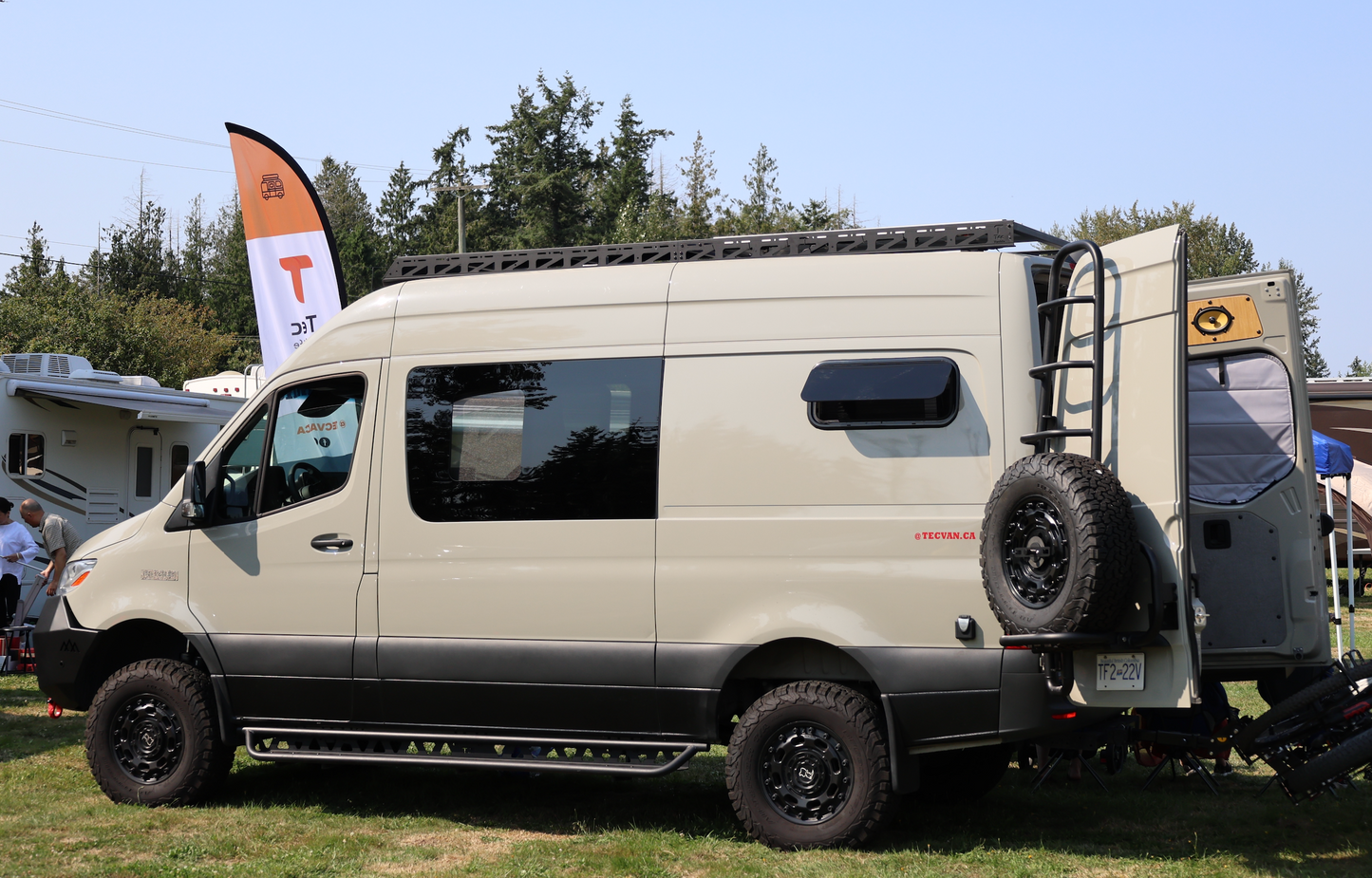

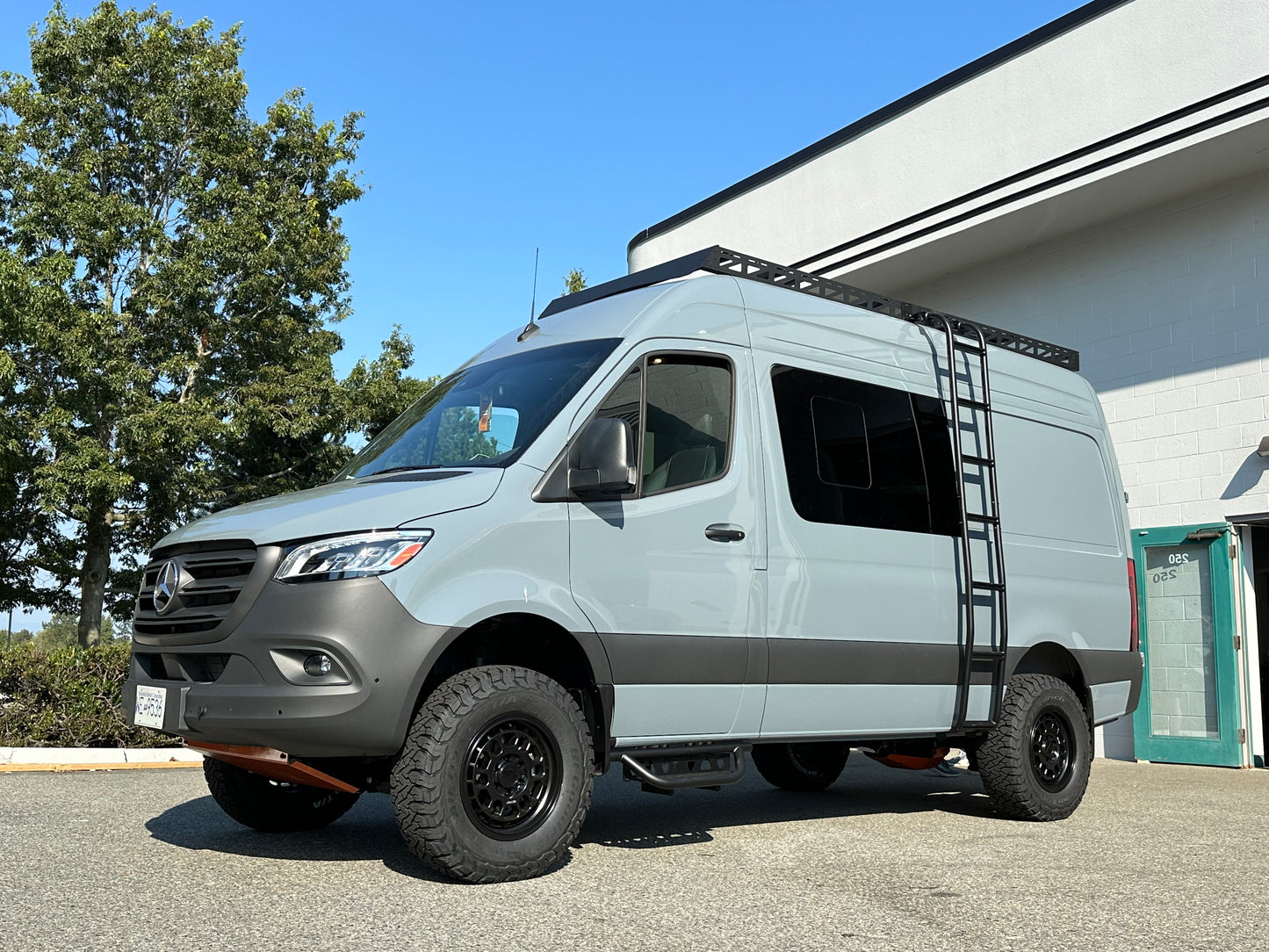

Fits 2007+ Sprinter High Roof Vans

Mercedes Sprinter Rack Installation Instructions



Tec Features:

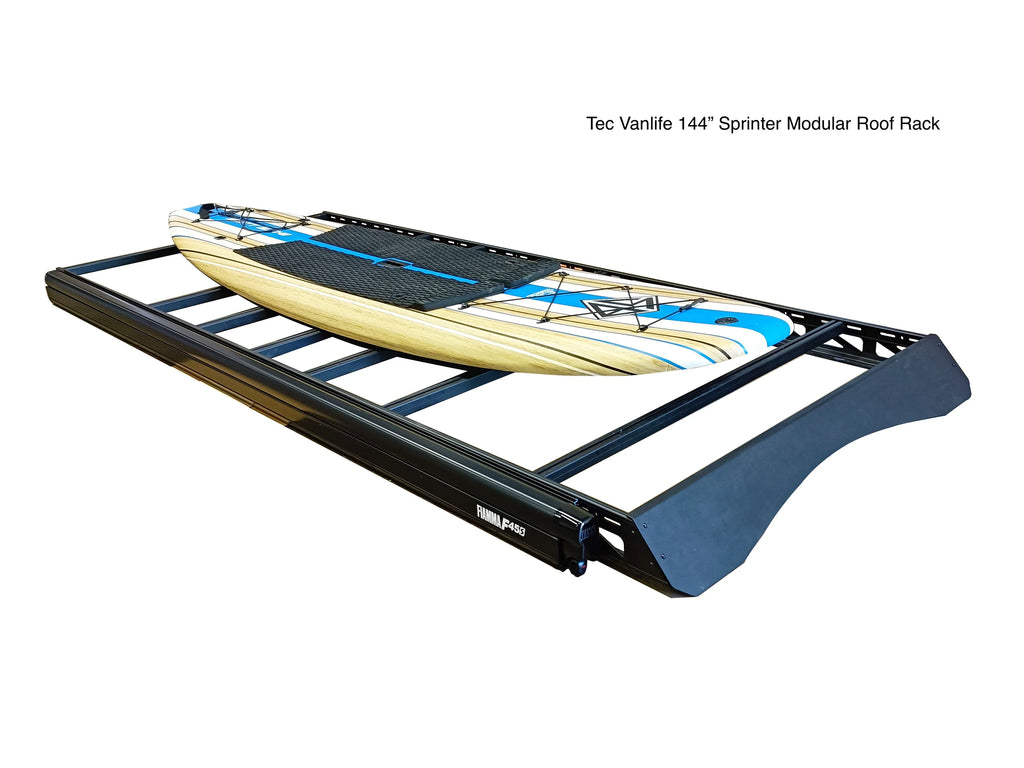

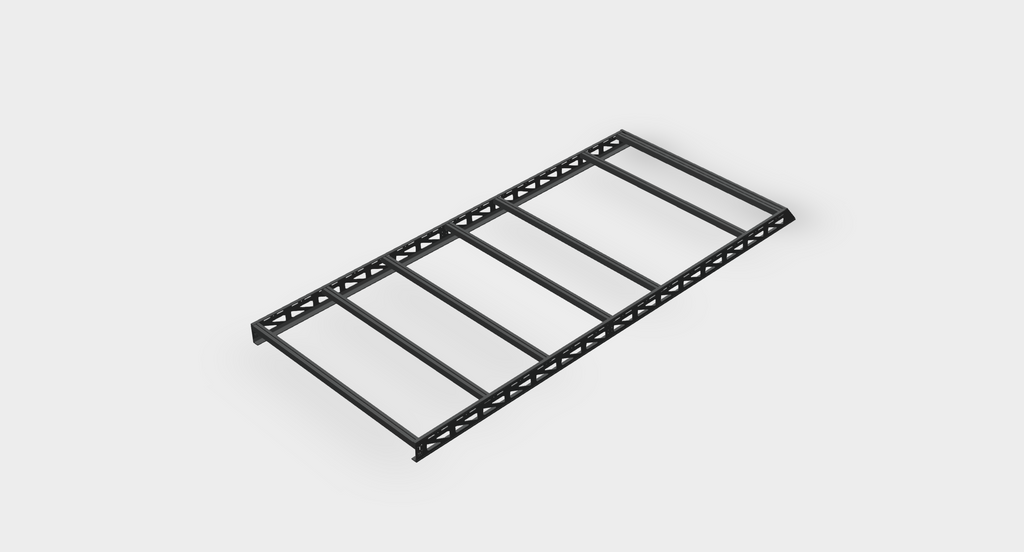

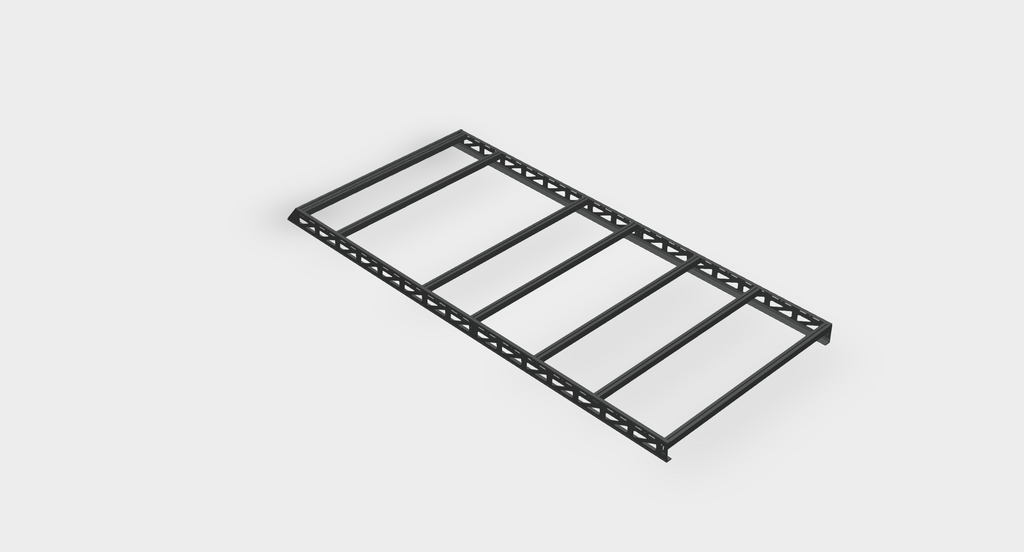

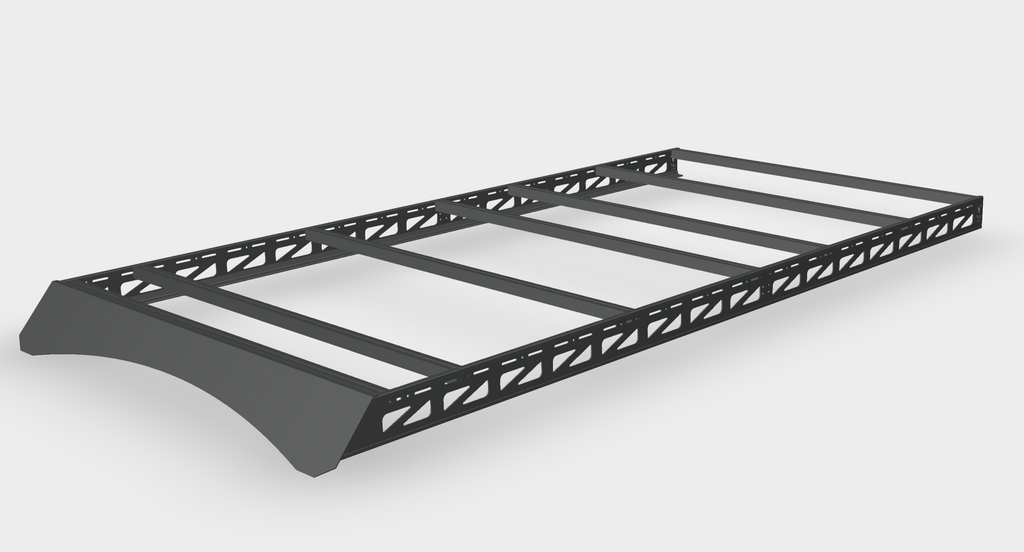

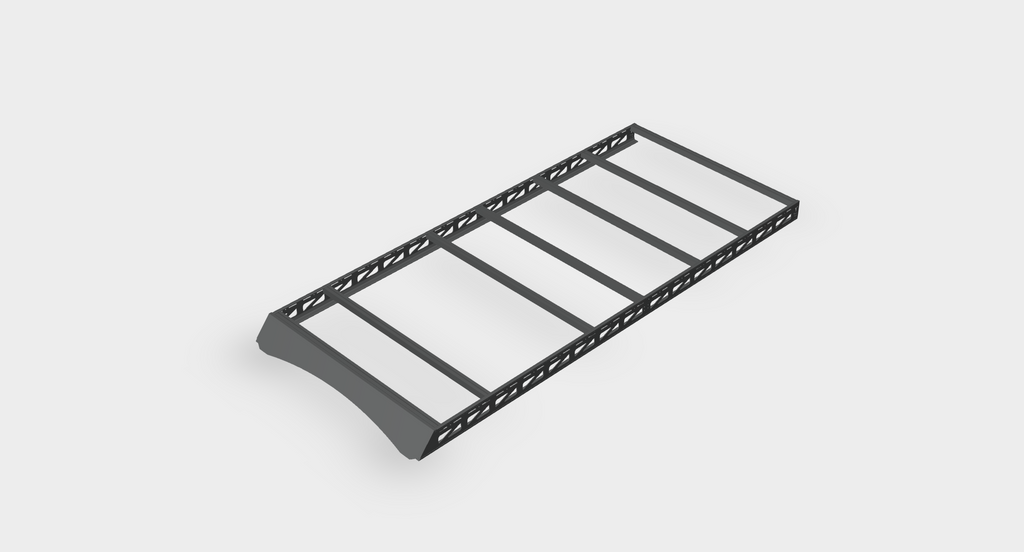

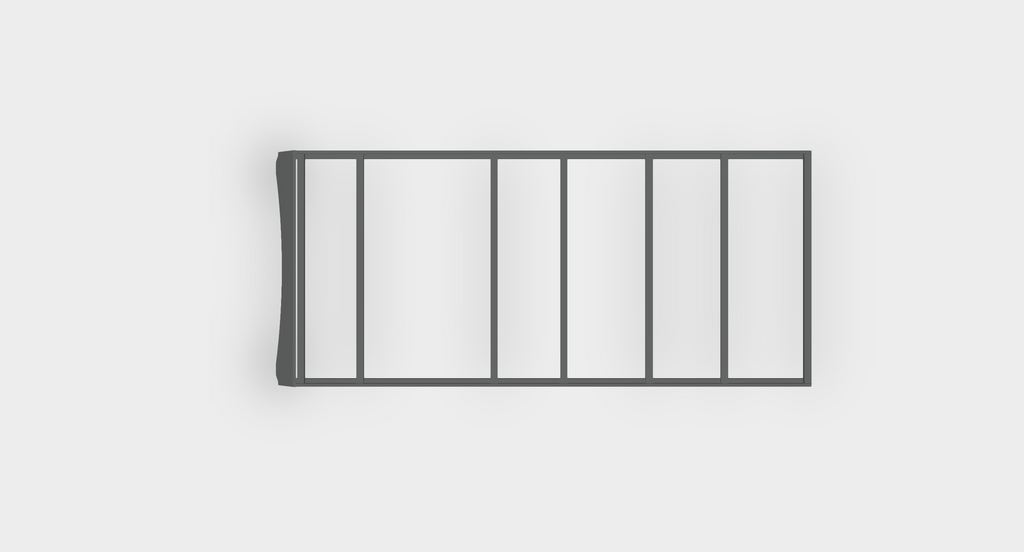

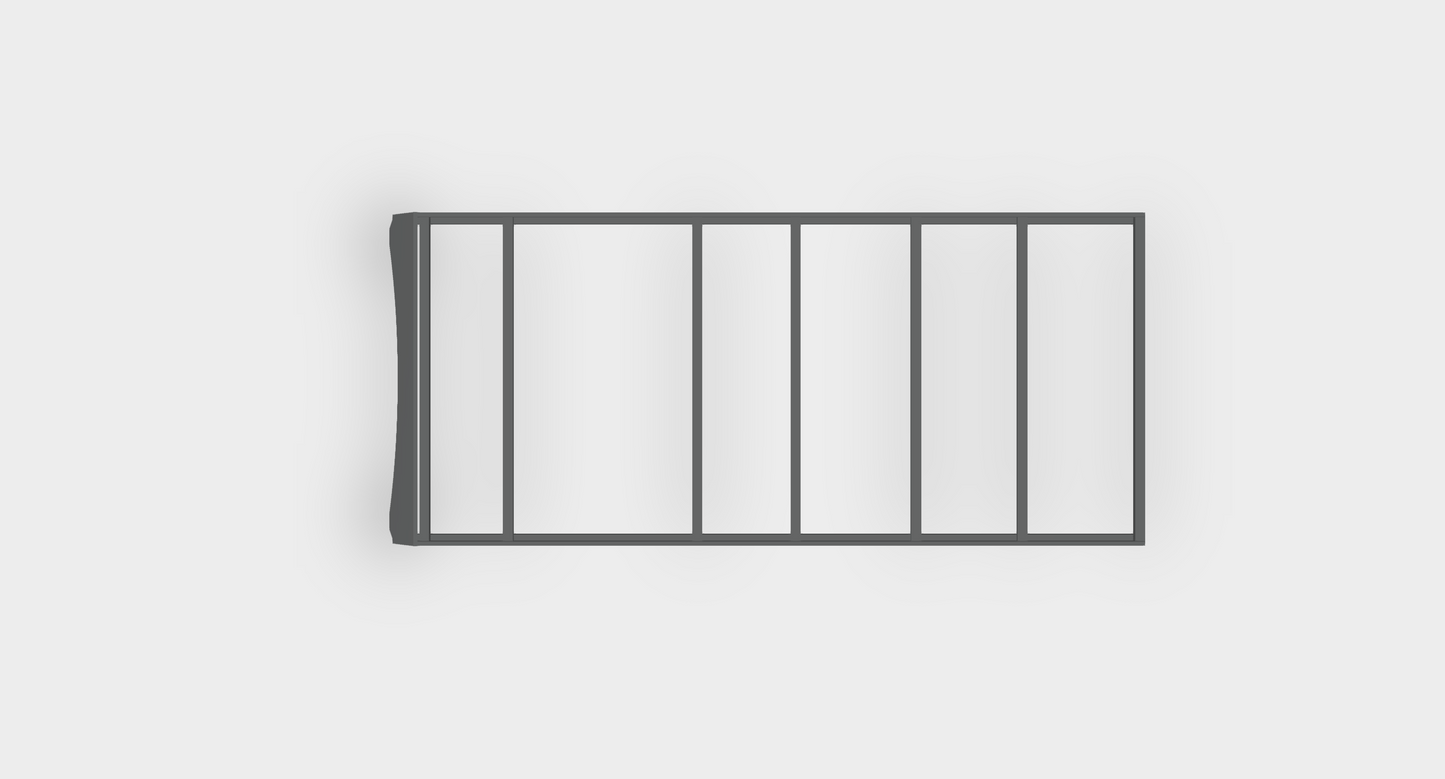

★ Modular design allows for the relocation of crossbars to accommodate solar panels, cargo boxes, or any other gear on your roof.

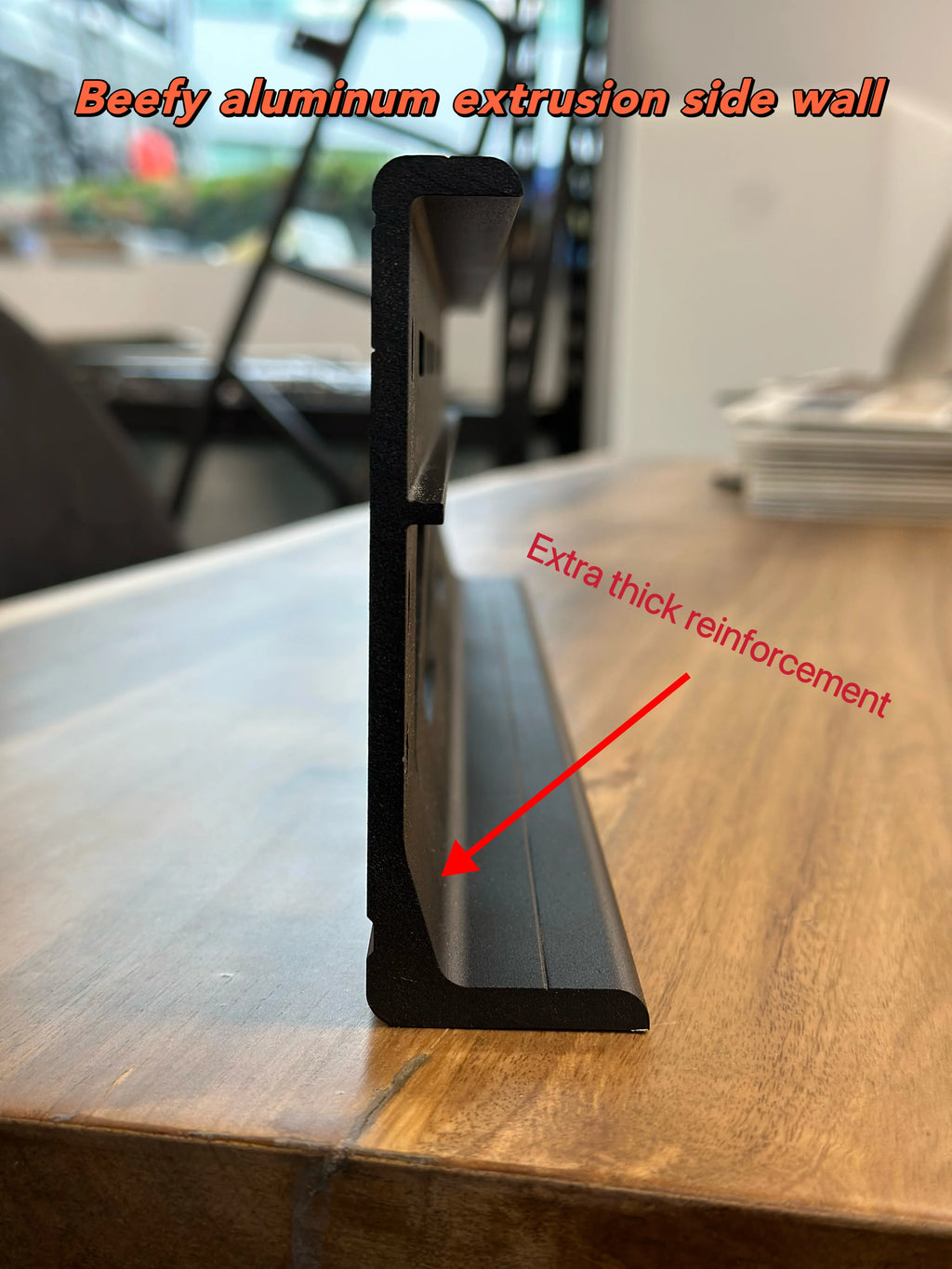

Side rails are extruded aluminum with a double-thick corner at providing maximum strength and rigidity for mounting awnings and supporting carry weight.

Tec Specs:

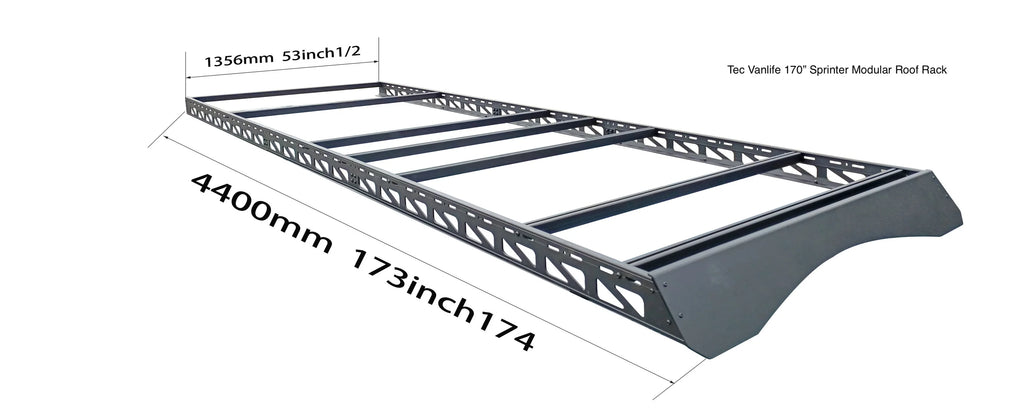

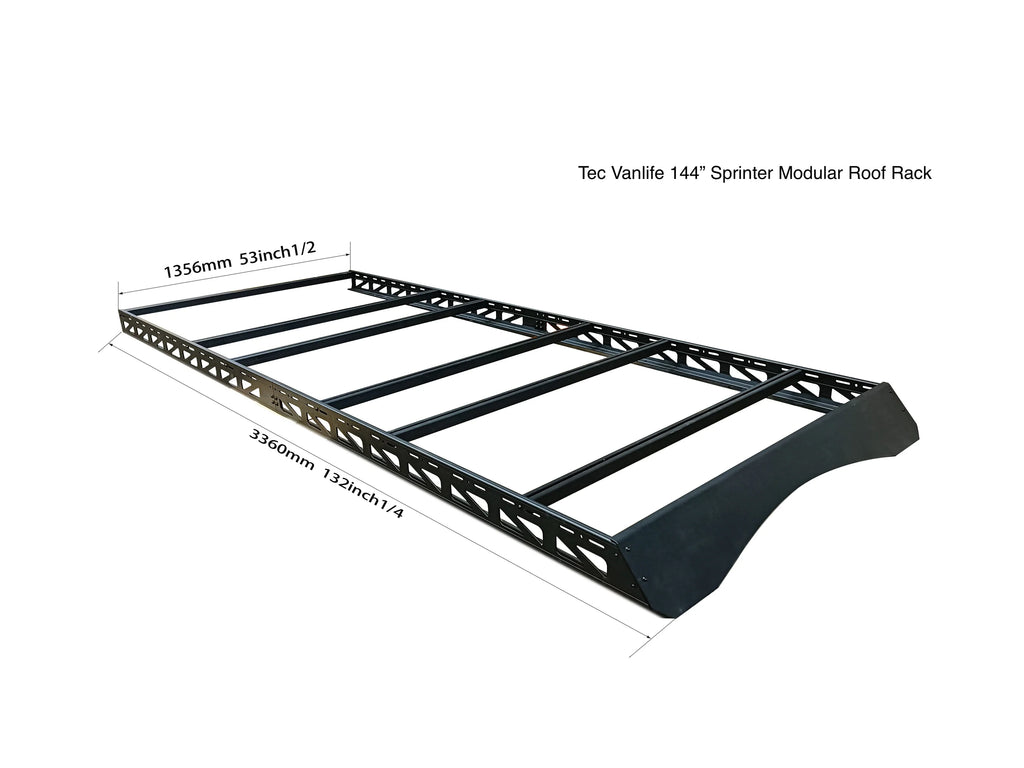

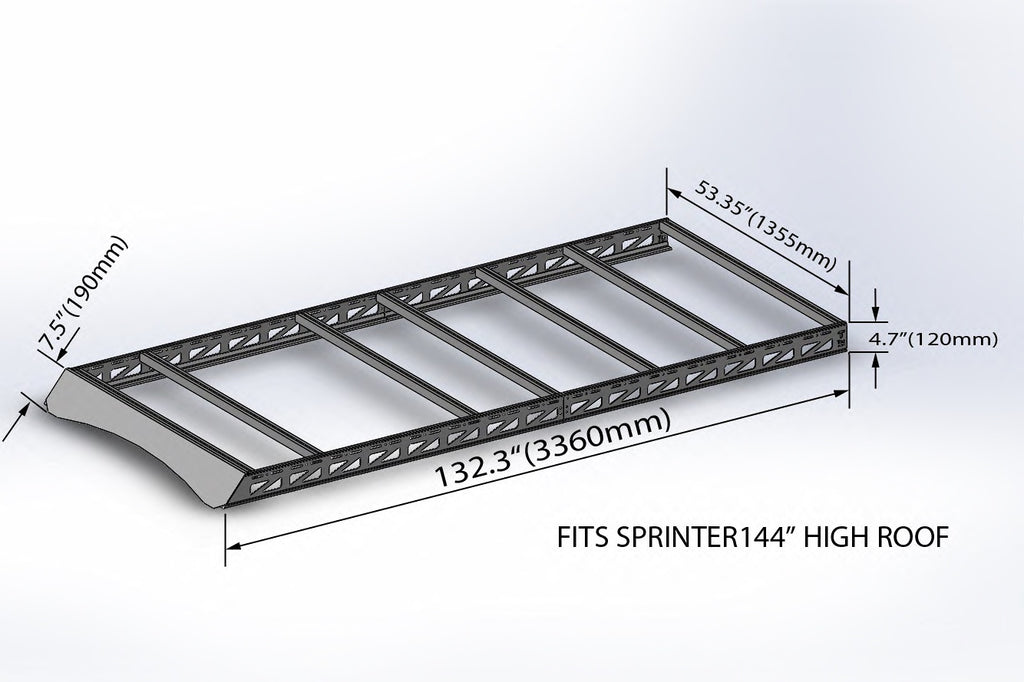

  • Available in 144, 170 lengths
  • Rail profile height: 5" (128mm)
  • Outside Width: 53.34" (1355mm)
  • Cross bar length:  52.95" (1345mm)
  • Weight:
    • 144 Sprinter: 56lbs

    • 170 Sprinter: 72lbs

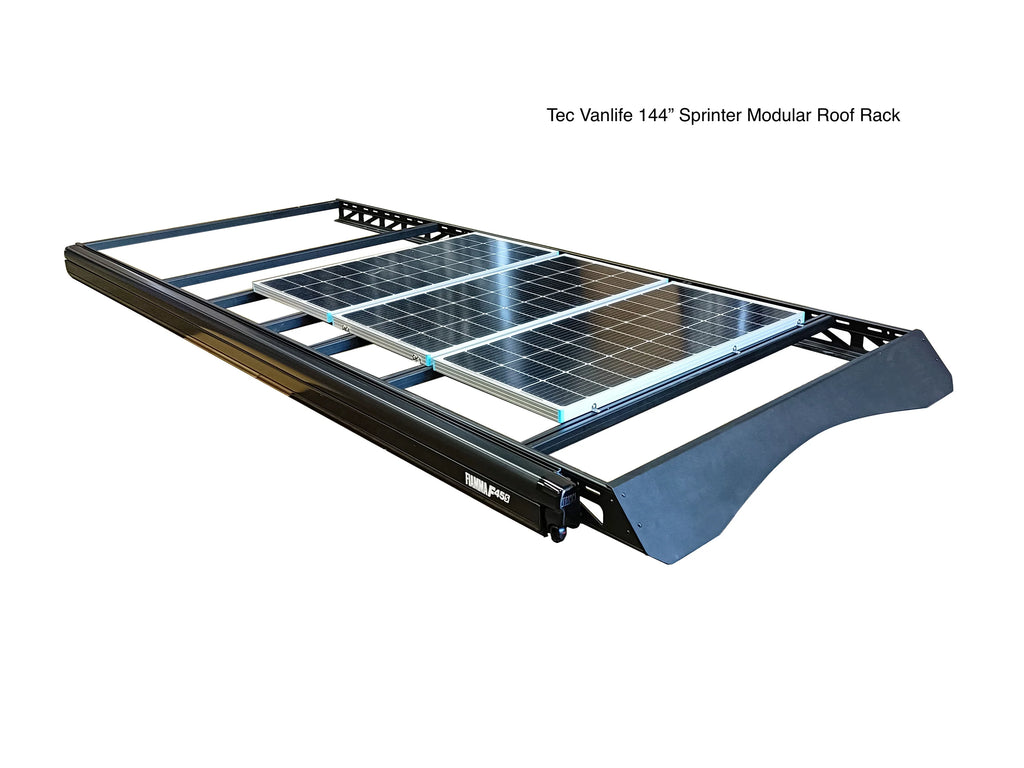

Internal width for fitting solar panels, etc.

Sprinter 144: 51.77" (1315mm51.77" (1315mm)

Sprinter 170:  62.22" (1555mm)

Why this rack?

Unlike conventional bent aluminum racks which often compromise on strength at bending points, the aluminum extrusions used in this roof rack ensure superior structural integrity and resilience, offering unmatched durability and load capacity.

Each crossbar and sidewall of the rack is crafted from a single, continuous piece of aluminum, molded under high pressure to create a uniform, robust profile that is impossible to achieve with bent aluminum. This results in a rack system that not only has a higher load-bearing capacity but also maintains its structural integrity under diverse and challenging conditions, making it ideal for the rugged demands of camper van travel.

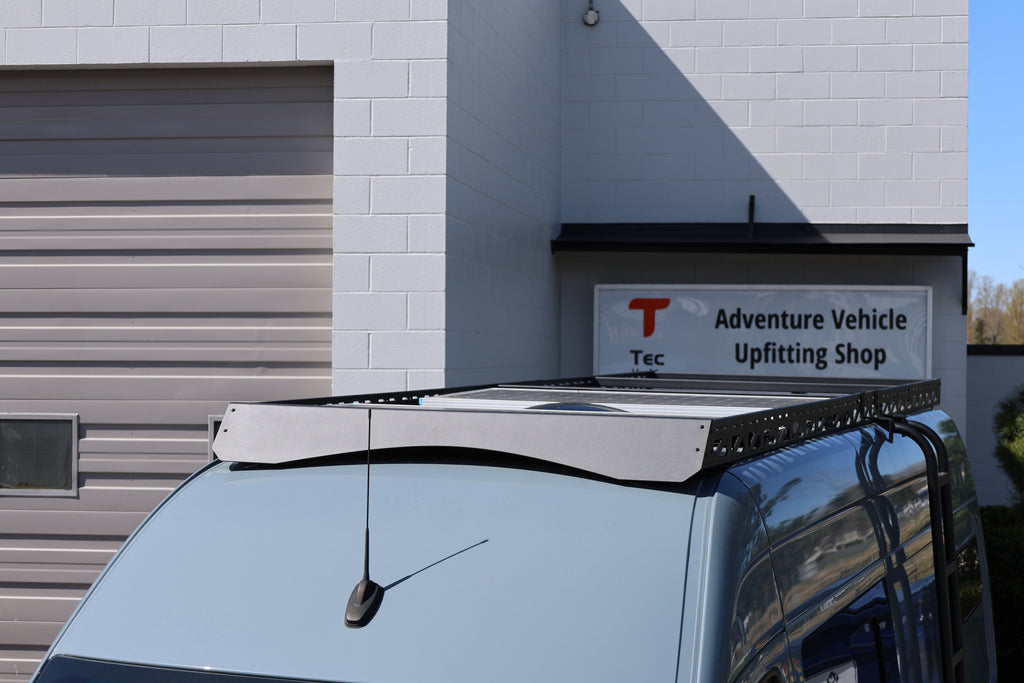

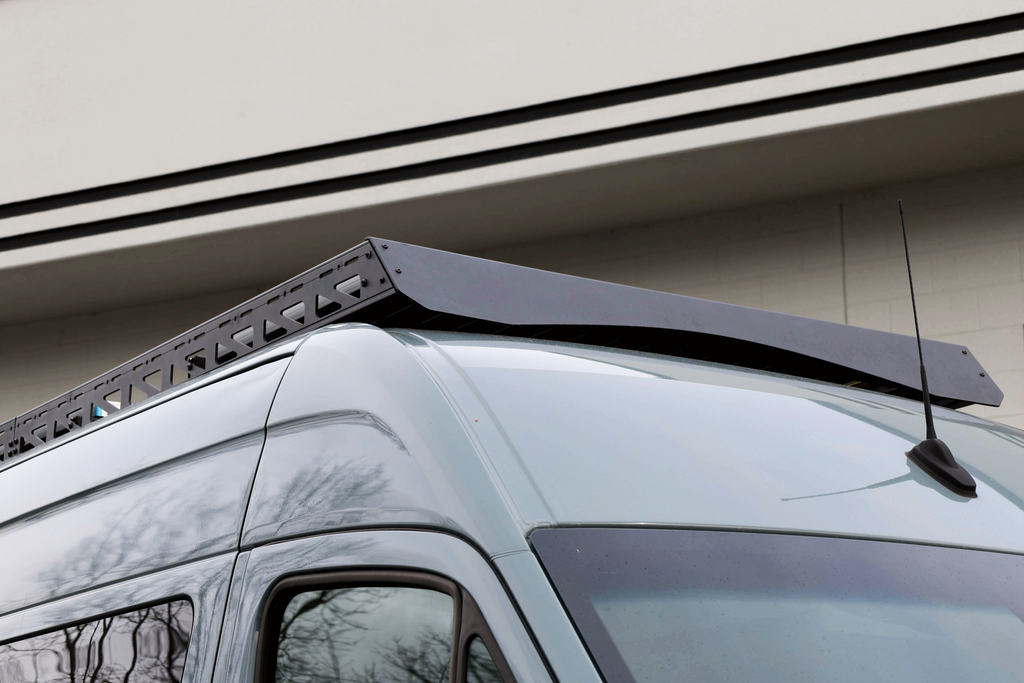

What also makes our roof rack stand out is our attention to detail. We purposely left a gap between the fairing and the van body. When driving on the highway, this gap allows turbulence created by air hitting the van body to escape, improving aerodynamic efficiency. Additionally, the gap allows more airflow under your solar panels, which helps cool them.  Plus, our aluminum extrusion approach for the side wall further reduces weight, as we can laser cut more openings in the side wall to increase airflow. This is extremely important because, while your vehicle is parked, these openings significantly improve airflow and heat dissipation under your solar panels.

Strength, Lightness, and Versatility - Engineered to Excel: Thanks to our proprietary custom aluminum extrusion, we've achieved the perfect trifecta of strength, lightness, and versatility. Our in-house engineering team worked tirelessly to craft cross bars and side walls with a special shape, enhancing the rack's structural integrity while keeping the weight to a minimum. The result is a roof rack that surpasses all expectations, delivering the utmost performance to fuel your wanderlust.

Note: For installing the Fiamma awning, you do need to drill additional holes on the side wall.

Roof rails are required to install this roof rack. If your van does not come with factory roof rails, you can purchase the roof rails together with the roof rack at a combo price.

WARNING!

Ignoring the following warnings may result in the rack detaching from the vehicle, leading to serious injury or death. Ensure you do not exceed the maximum load limit specified by the vehicle manufacturer and use all available attachment points on the van roof. Inspect and tighten all hardware after the first 100 miles and every 600 miles thereafter. Check the overall integrity of the rack every 600 miles or monthly, whichever occurs first. If you are unsure, submit rack plans or photos to info@tecvan.co for evaluation before final installation or use. The van owner and/or installer assumes all risks associated with rooftop-mounted items and/or components.
