TEC SPECS
|
Model |
3000R |
|
Input Voltage |
DC24V/48V |
|
Operating Current |
13-40A/8-25A |
|
Cooling Capacity |
10000/12000BTU |
|
Air Flow Rate |
250 CFM |
|
Rated Power |
960W/1200W |
|
Refrigerant |
R410a 470g |
|
Power Consumption |
Eco mode: 300-400W Turbo mode: 900-1200W |
|
Noise Level |
Eco mode: 55dB Boost mode:65dB |
|

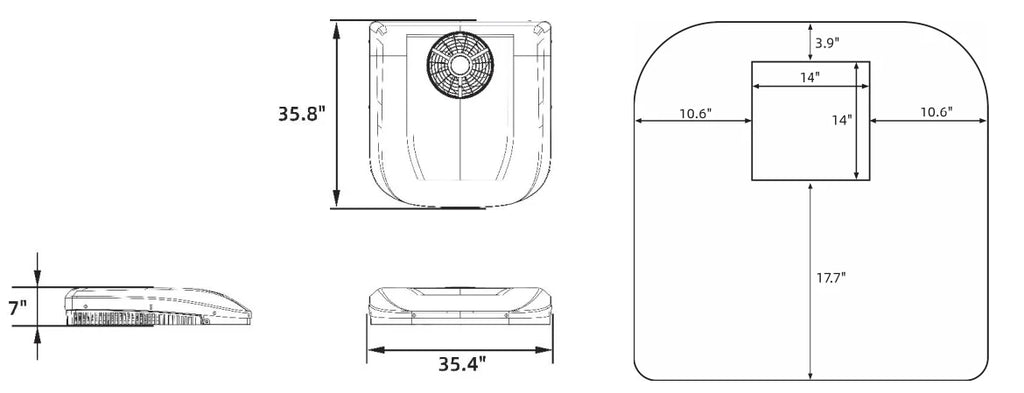

Roof Unit Dimension |
W35.8”*L35.4”*H7” |
|
ADB Dimension |
W20”*L19.7”*H2” |
|
Weight |
75lb |
Download User Manual
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (12AWG for 48V)
- User manual
* One-year limited warranty

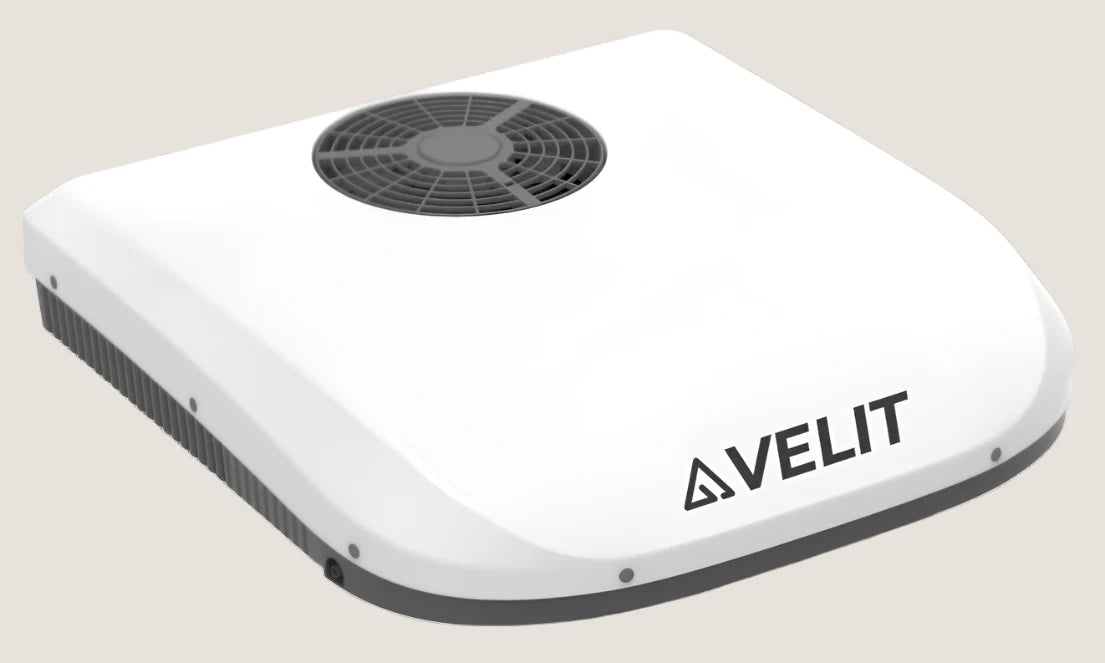

The Velit 3000R stands as our most powerful DC air conditioner to date. Equipped with a high-output tuned twin-cylinder rotor compressor, it delivers an impressive 12000 BTU of cooling capacity at 48V, while drawing as little as 6A. The unit features a flush-mount motorized air distribution box for optimal air circulation throughout the space. With a slim profile requiring only 7 inches of clearance, it fits seamlessly into standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
