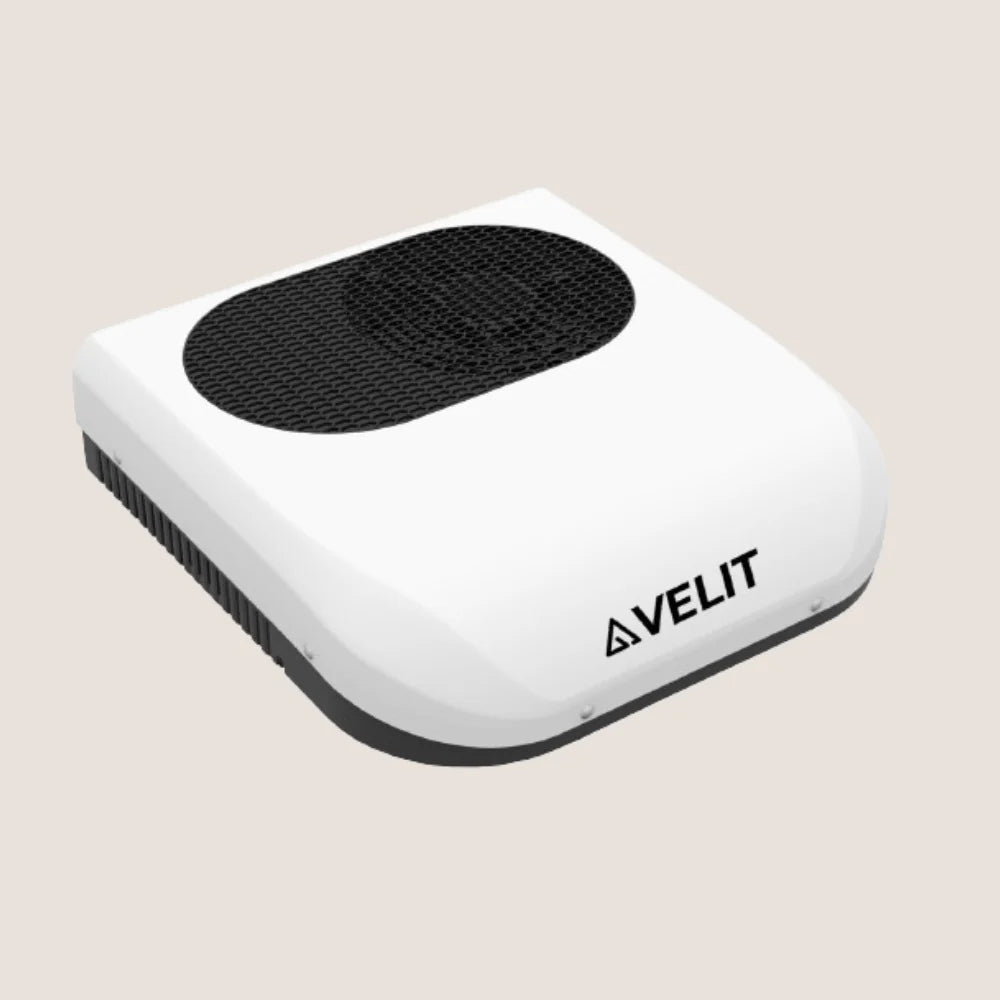

This super-efficient DC-powered rooftop air conditioner is one of the smallest rooftop air conditioners ever built. With the twin-cylinder rotor compressor, the Velit 2000R Mini delivers 7500 BTU of cooling capacity and draws as low as 20A (at 12V). It is also available for a 48Volt system. The unit can be directly powered by most vehicle alternators without the need for a second battery. It also has a slim profile with only 6.5” of clearance and can easily fit in the standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (6AWG for 12V, 12AWG for 48V)
- User manual
* One-year limited warranty
SPECS
|
Model |
2000R Mini |
|
Input Voltage |
DC12V/48V |
|
Operating Current |
20-50A/5-14A |
|
Cooling Capacity |
6500/7500BTU |
|
Air Flow Rate |
250 CFM |
|
Rated Power |
600W/670W |
|
Refrigerant |
R134a 500g |
|
Power Consumption |
Eco mode: 250-300W Turbo mode: 400-650W |
|
Noise Level |
Eco mode: 45dB Boost mode:58dB |
|

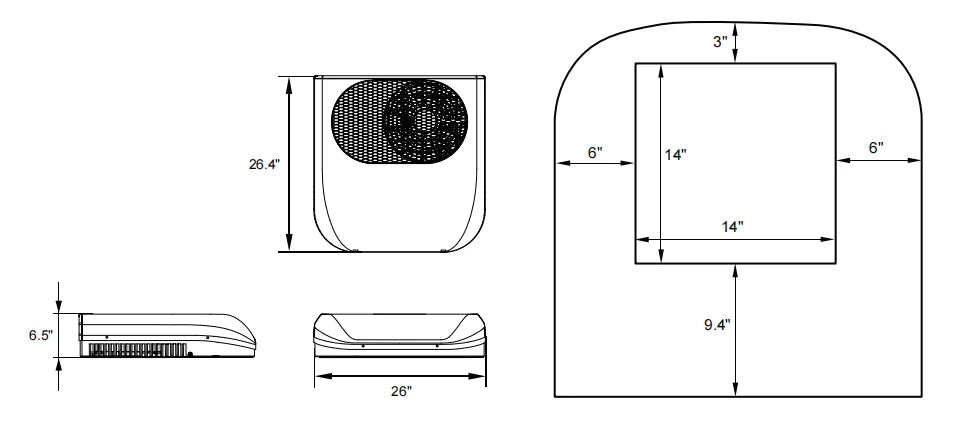

Roof Unit Dimension |
W26.4”*L26”*H6.5” |
|

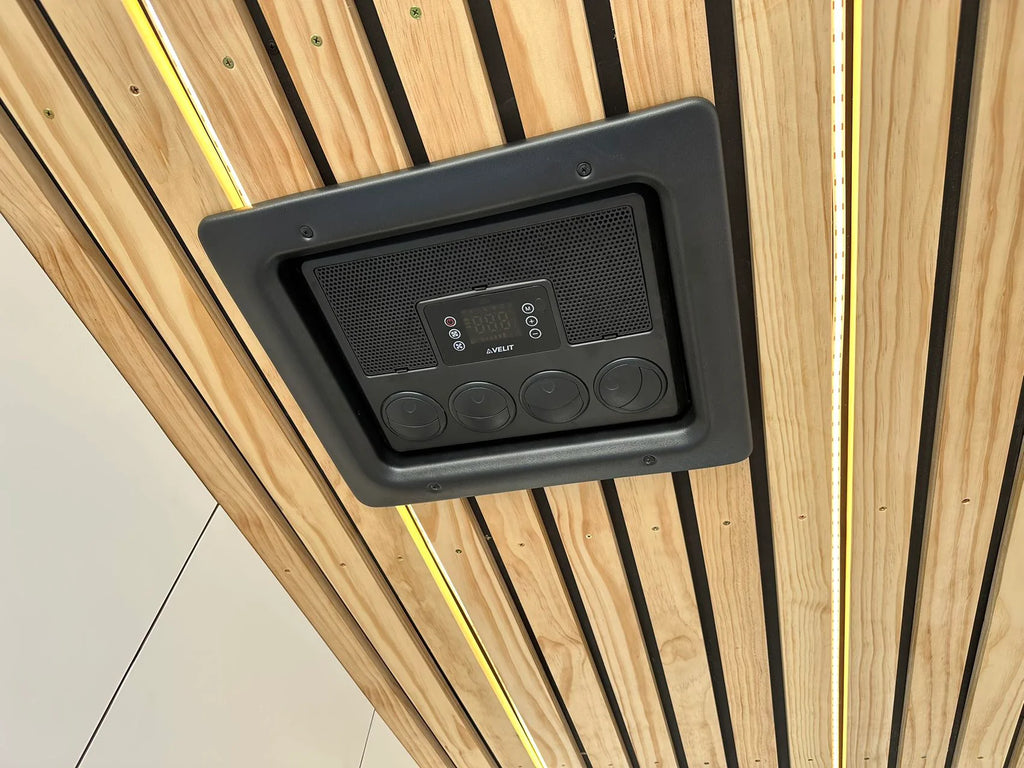

ADB Dimension |
W13.8”*L11”*H4.3” |
|
Weight |
61lb |
