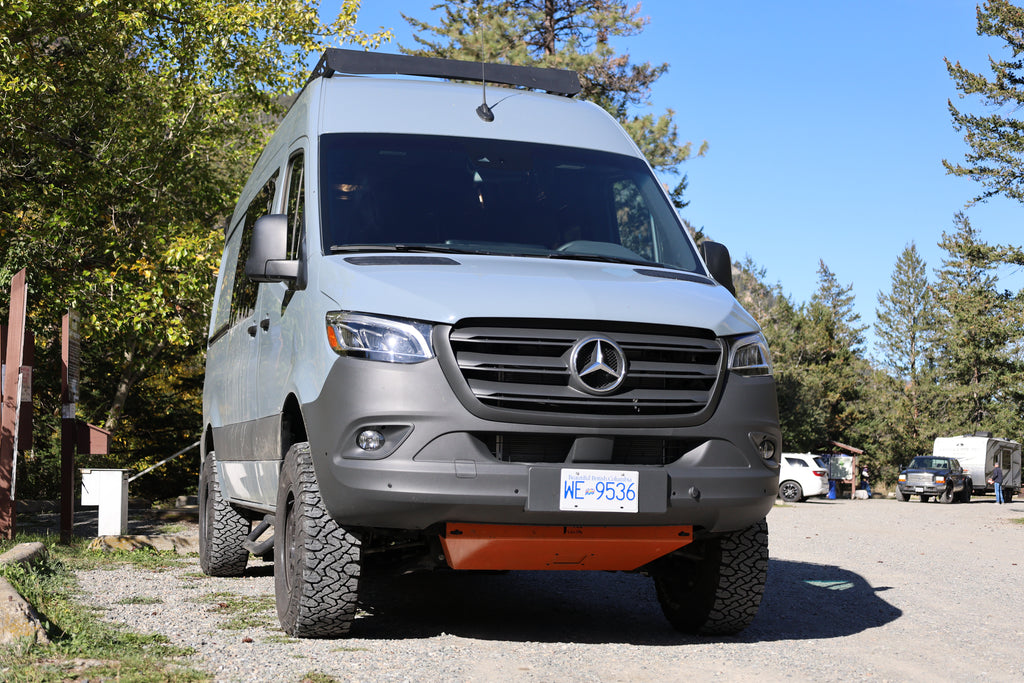

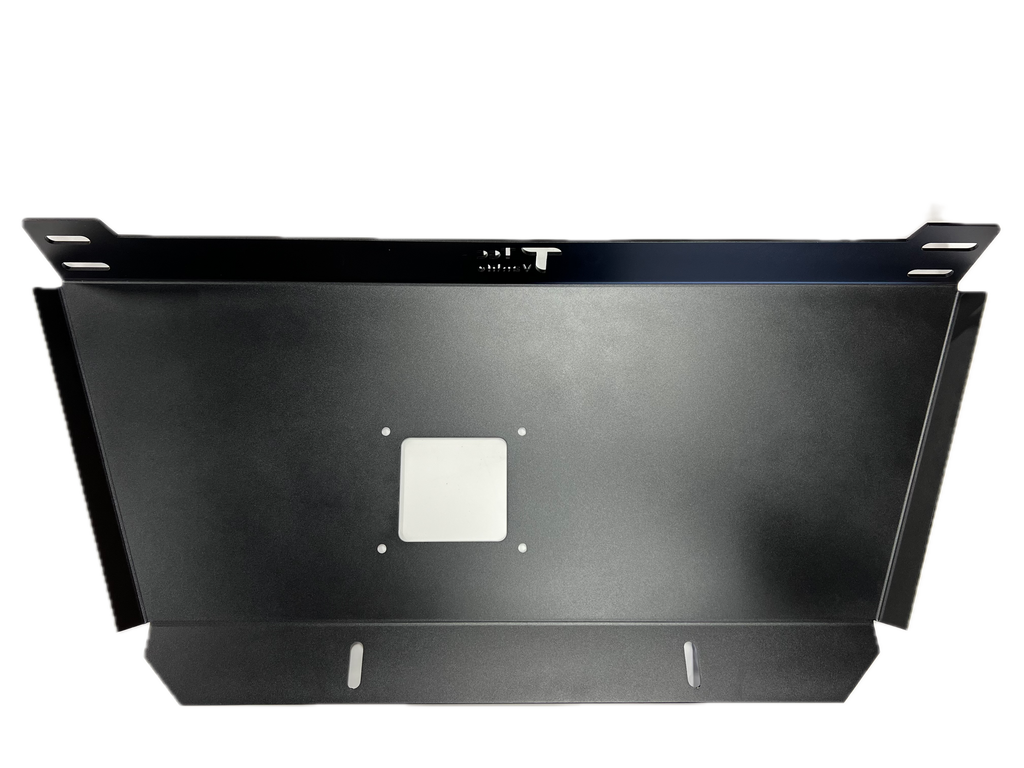

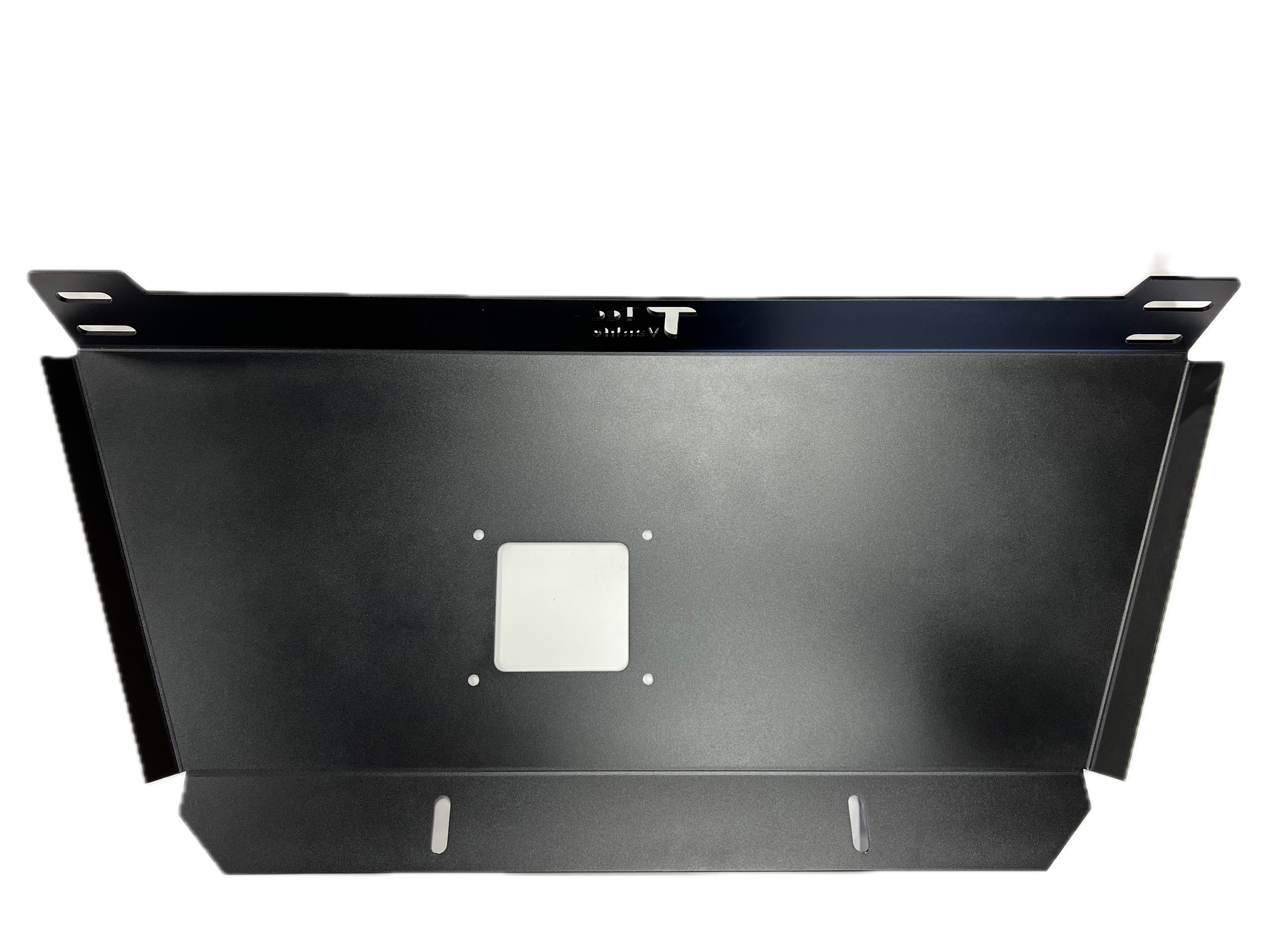

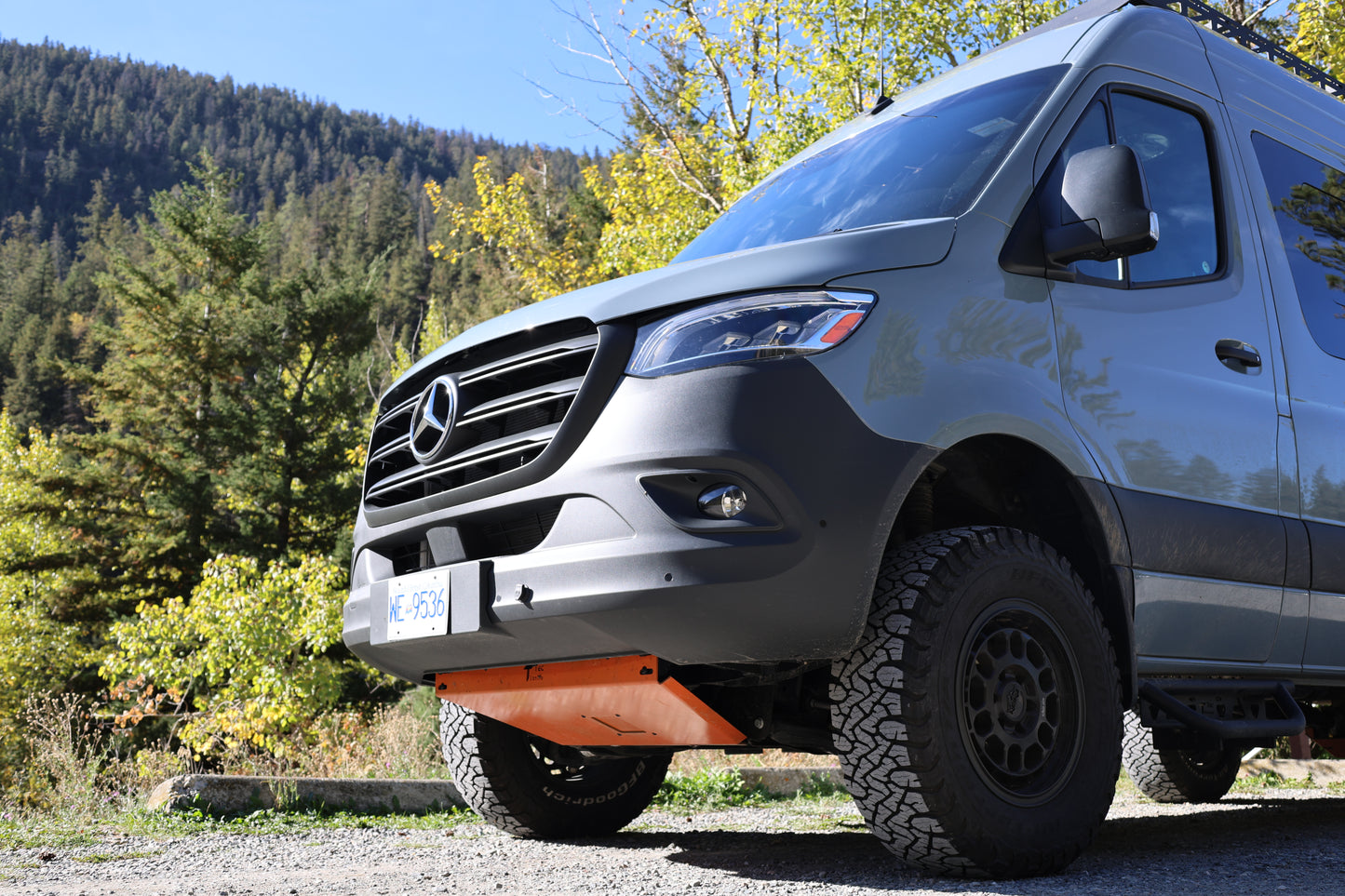

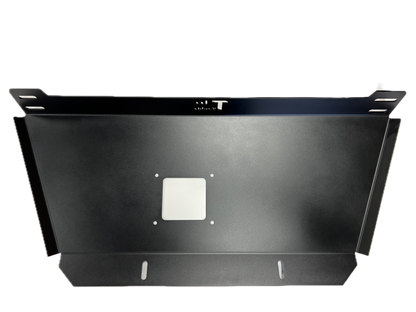

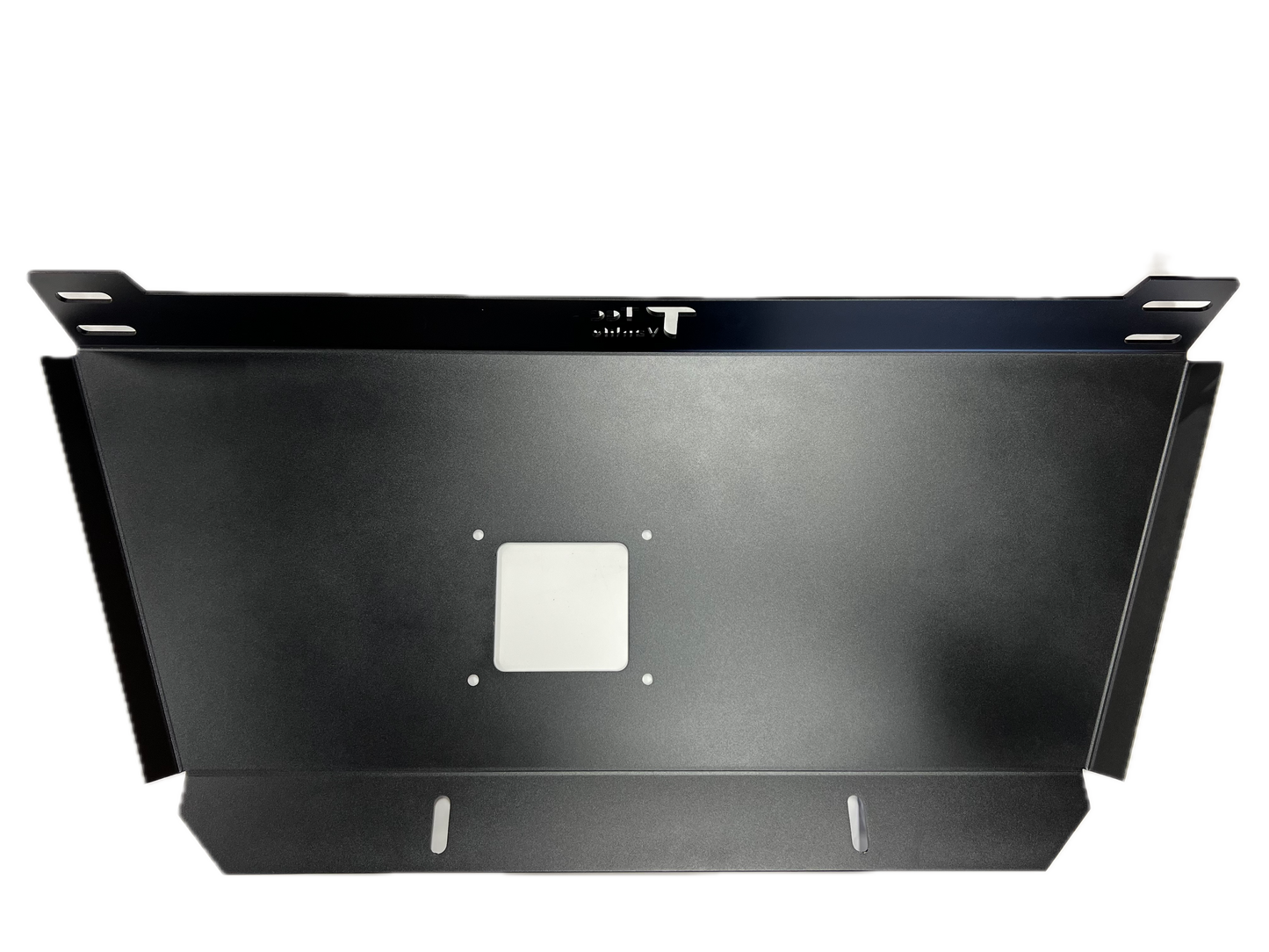

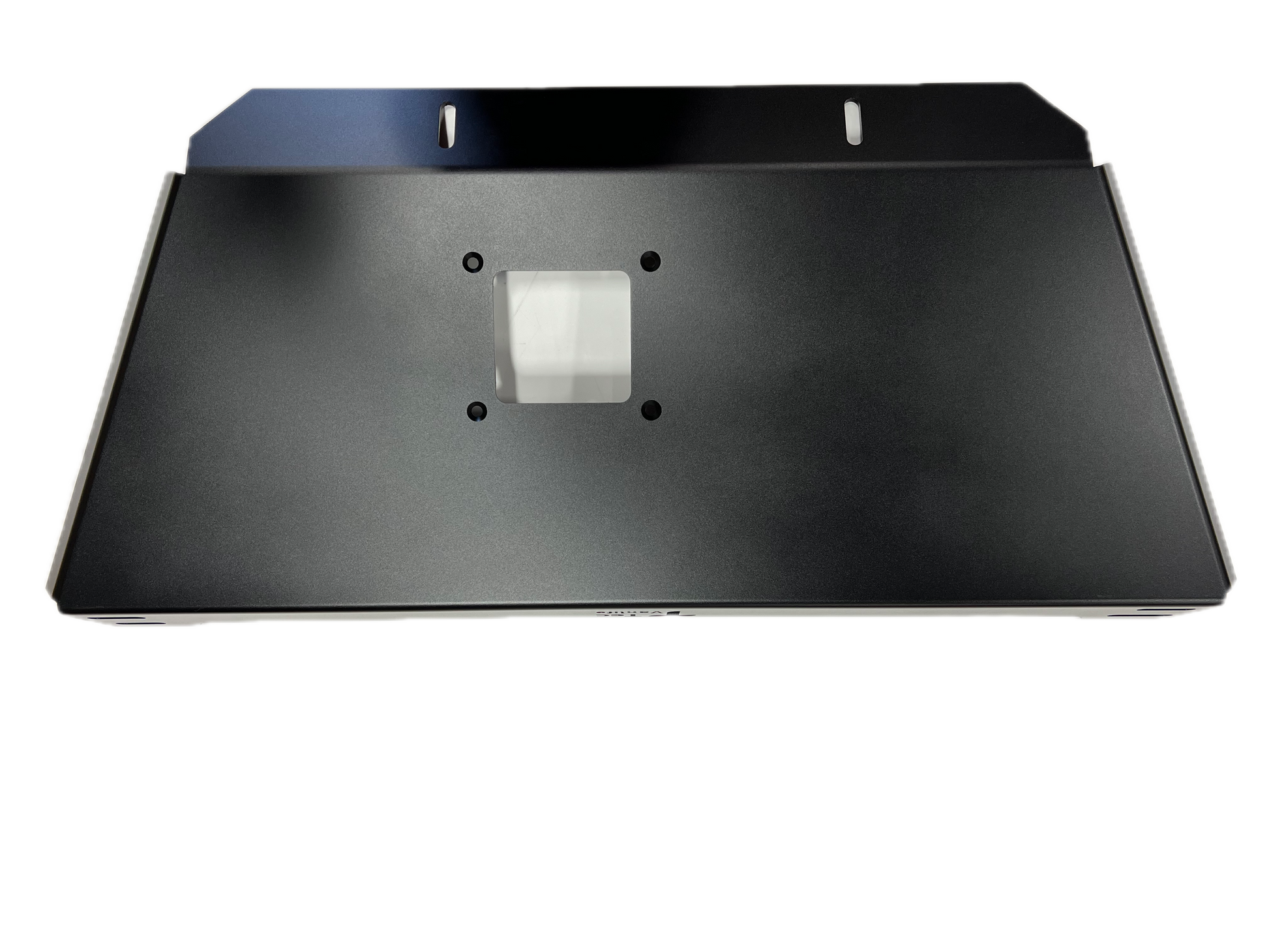

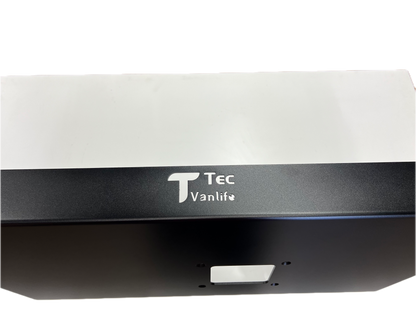

Sprinter Engine Skid Plate 2019+

Sprinter Engine Skid Plate 2019+

SKU:E-HW-T-ESP-4X4

Style
Regular price $649.00 CAD
Regular price $649.00 CAD Sale price $649.00 CAD
Sale Sold out
Shipping calculated at checkout.

-FREE Shipping to Lower 48s & 🇨🇦.



TEC Features:

  • High-Strength Aluminum: Made from 3/16" thick high-strength aluminum, this skid plate provides superior durability and protection while maintaining a lightweight profile.
  • Comprehensive Protection: Shields the oil pan, power steering rack, and subframe from rocks, logs, roots, snow, ice, and all types of debris, ensuring your vehicle remains in top condition.
  • Corrosion Resistance: The aluminum construction offers excellent corrosion resistance, prolonging the life of the skid plate and maintaining its protective qualities.
  • Compatibility: Specifically designed to fit 2019+ Sprinter models, including both 4x4 and AWD variants, ensuring a precise fit and seamless integration with your vehicle.
  • Lightweight Design: The lightweight nature of aluminum ensures minimal impact on your vehicle's performance and fuel efficiency.
  • Easy Installation: Engineered for straightforward installation, allowing you to enhance your vehicle's protection quickly and easily without professional assistance.

TEC Specs:

  • Dimension: 41" x 23 1/4" x 4"
  • Thickness: 3/16"
  • Weight per unit: 18.6 lbs



Installation Instructions:


1. Prep the Van

    • Park on a level surface and engage the parking brake.
    • Raise the front of the van with a jack and secure it with jack stands, or use a lift for easier access.

2. Front Mounting – Factory Bolt Points

    • Lift the skid plate into position under the engine bay.
    • Align the front holes of the skid plate with the pre-threaded factory frame holes on the front crossmember.
    • Insert factory bolts (or reuse existing bolts if removed).
    • Hand-tighten to hold in place.

3. Rear Mounting – Suspension Subframe

    • Align the rear holes of the skid plate to the factory holes near the lower control arm/suspension area:
    •  4x4 Sprinter (2019–2022): Rear bolt holes sit wider apart.
    •  AWD Sprinter (2023+): Rear bolt holes are closer together and slightly forward.
    • Insert the two included bolts into these rear frame points.
    • Hand-tighten initially.

4. Final Torque

    • Verify the skid plate is centered and flush against the frame.
    • Torque all bolts (front and rear) to 30–35 ft-lbs.
    • Recheck after your first off-road trip or 100–200 km.

Notes:

    • No drilling, trimming, or bracket installation required.
    • Compatible with stock engine splash guards and aftermarket lift kits.
    • Designed to protect oil pan, crossmember, and steering components.

Upgrade your Sprinter's protection with the Sprinter Engine Skid Plate, meticulously crafted from 3/16" thick high-strength, lightweight aluminum. Designed to safeguard your vehicle's engine and essential components, this skid plate is the ultimate shield against tough terrain and road debris.

Equip your 2019+ Sprinter with our Engine Skid Plate and drive with confidence, knowing your engine and critical components are protected by high-strength, lightweight aluminum. Whether tackling rugged trails or navigating daily roads, ensure your Sprinter is ready for any challenge.
