Scanstrut TILE Dual USB-C Interior Charging Socket – Black Bezel
Scanstrut TILE Dual USB-C Interior Charging Socket – Black Bezel
SKU:
Couldn't load pickup availability
- Fast Dual Charging – Charge 2 devices via USB-C with up to 60W output.
- Flush Interior Fit – Ultra-low profile with a compact 40mm footprint.
- 12V & 24V Compatible – Full 60W charging on 24V systems.

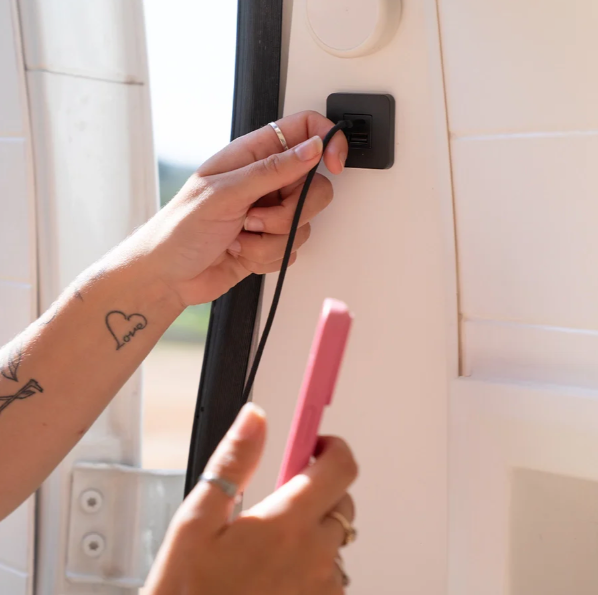

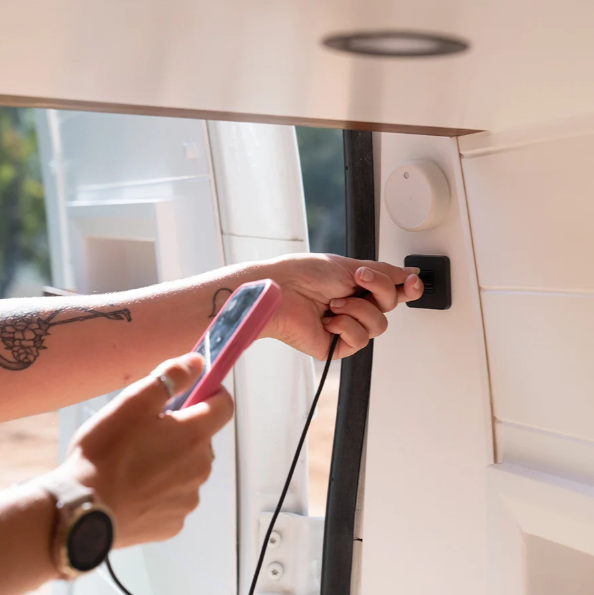

The Scanstrut TILE Series delivers sleek, high-performance charging solutions designed for modern interiors. With a compact 40mm footprint and front-fit design, this socket installs easily using a standard 29mm hole saw—perfect for clean, flush installations in boats, vehicles, and more.
Blending style and performance, the TILE Series is ideal for upgrading your space with reliable, high-speed USB-C charging for today’s power-hungry devices.
Key Features:
- Dual USB-C ports for simultaneous charging
- Supports 12V and 24V systems
- Up to 36W on 12V / 60W on 24V
- Ultra-low profile with tiny footprint
- Moisture-protected, conformal-coated electronics

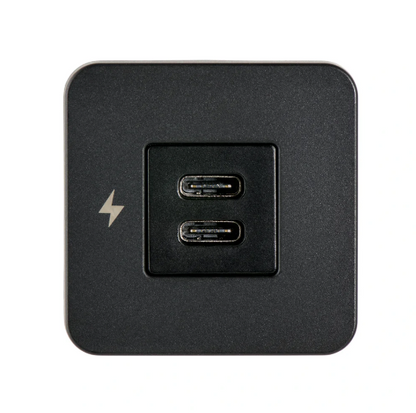

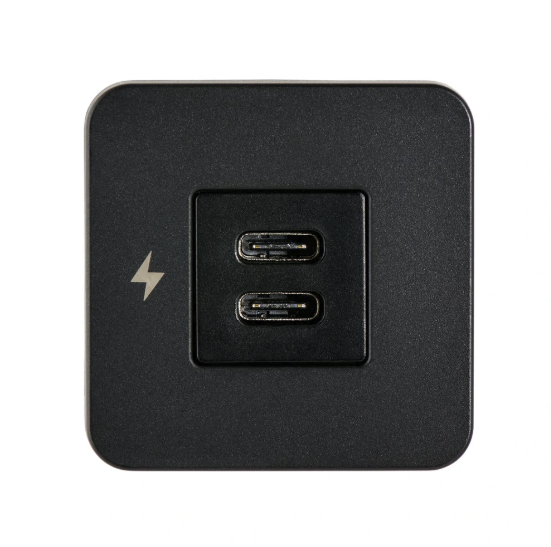

- Sleek matte black bezel

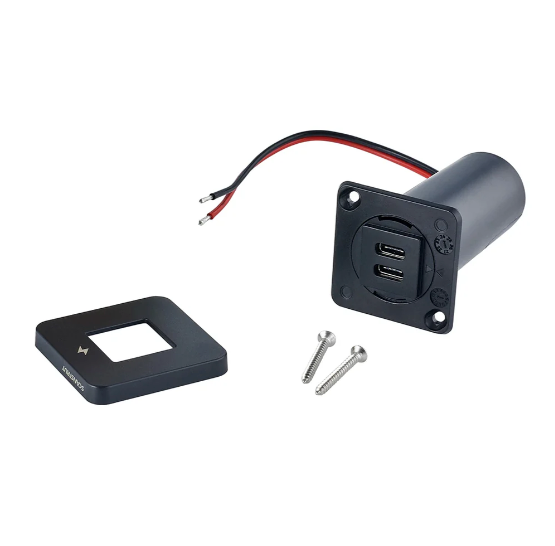

- Easy front-fit installation
Fast & Flexible Charging
Delivers up to 60W on 24V systems—ideal for laptops, tablets, phones, and any USB-C powered device. Charges up to two devices at once.
Compatibility
Universal fit for USB-C cables and connectors. For best results, use high-quality USB-C to USB-C or USB-C to Lightning cables.
Important Notes:
- Charging speed for phones is the same on both 12V and 24V systems.
- Full 60W output requires a 24V system for laptop charging.
- For interior use only. Do not install where exposed to water.
Click Here to Download Installation Guide
Click Here to Download Technical Drawing
Specifications
| Input Voltage | 10-30V DC (12/24V system) |
| Input current | Max 6A (10A fuse recommended) |
| Output (Type C) | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX |
| Standby Power Draw | < 0.01W |
| Certification | CE, FCC, UKCA, C-Tick, ROHS, WEE |
