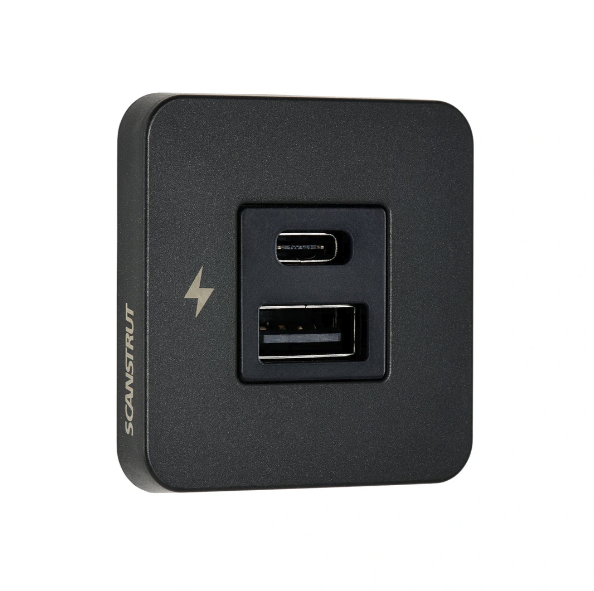

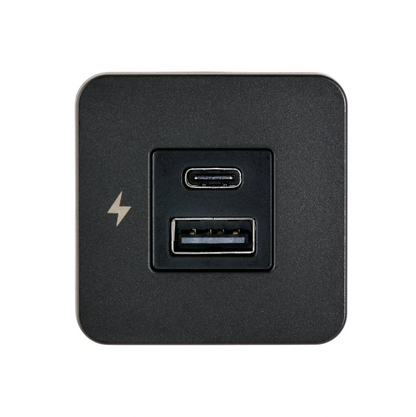

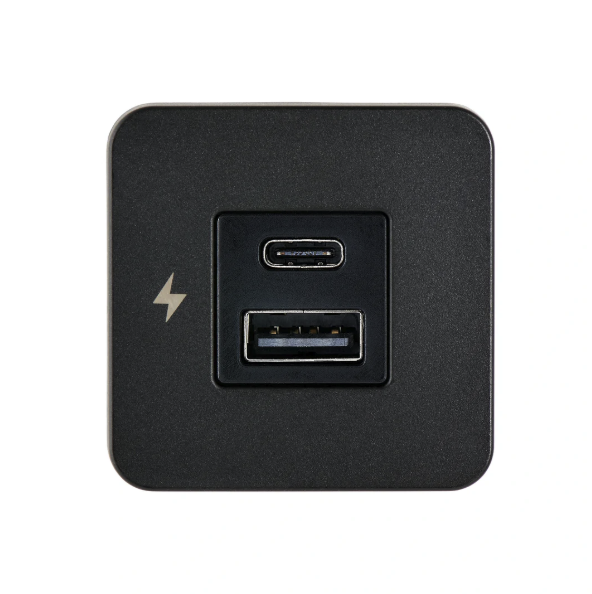

Scanstrut TILE USB-A & C Interior Charging Socket – Black Bezel

Scanstrut TILE USB-A & C Interior Charging Socket – Black Bezel

$72.00 CAD
$72.00 CAD
Sale Sold out
Shipping calculated at checkout.

The TILE Series delivers sleek, high-performance charging for modern RV interiors. Designed to blend seamlessly into luxury spaces, this ultra-low profile socket offers both USB-A and USB-C ports in a compact, stylish design.

With a minimal 40mm footprint and simple front-fit installation using a 29mm hole saw, it’s the ideal upgrade for efficient, clutter-free charging on the road.

Key Features

  • USB-A & USB-C ports

  • Supports 12V and 24V systems

  • Ultra-low profile with front-fit design

  • Fast charging:

  • Up to 36W on 12V

  • Up to 60W on 24V

  • Charges up to 2 devices simultaneously

  • Conformal-coated electronics for moisture protection

  • Black bezel finish (also available in 316 stainless steel)

  • Designed for dry, interior use only

Important: For best performance, use original or high-quality USB-C cables. Full 60W output for laptops requires a 24V power system.

Features
  • Supports both 12V and 24V systems with moisture-protected electronics.
  • USB-A & USB-C ports for fast, flexible power.
  • Blends seamlessly into modern interiors with a clean, flush fit.

Specifications

Input Voltage 10-30V DC (12/24V system)
Input current Max 6A (10A fuse recommended)
Output (Type C) 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Standby Power Draw < 0.01W
Certification CE, FCC, UKCA, C-Tick, ROHS, WEE
