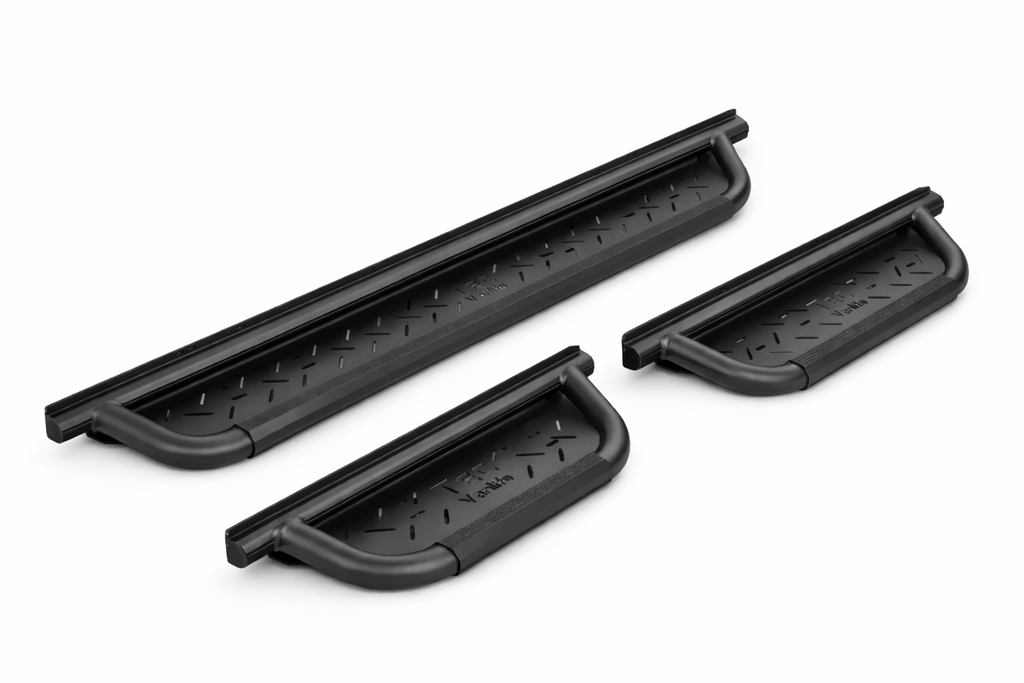

Hexagon aluminum running boards for Mercedes-Benz Sprinter
A textured stepping surface and cast aluminum mounting brackets make entry and exit easier. Choose the two-front-piece kit or the three-piece kit for your van and check underbody clearance before ordering.
Choose your kit
-
Three-piece kit: listed for Sprinter 144 and 170 configurations. Confirm fitment before ordering for a 170 EXT or a modified body.
-
Two-front-piece kit: front steps only. The listed option includes compatible Sprinter-based Ekko and GH1 applications; confirm the body and underbody arrangement for your vehicle.
The stated vehicle range is 2007+ Mercedes-Benz Sprinter, including NCV3 and VS30, RWD, 4x4 and AWD, 2500 and 3500 models. Wheelbase alone does not confirm fitment: accessibility lifts, side skirts, water tanks, auxiliary fuel tanks and other accessories can interfere with mounting or clearance.
Features and ground clearance
-
Aluminum construction: coated boards with cast aluminum mounting brackets.
-

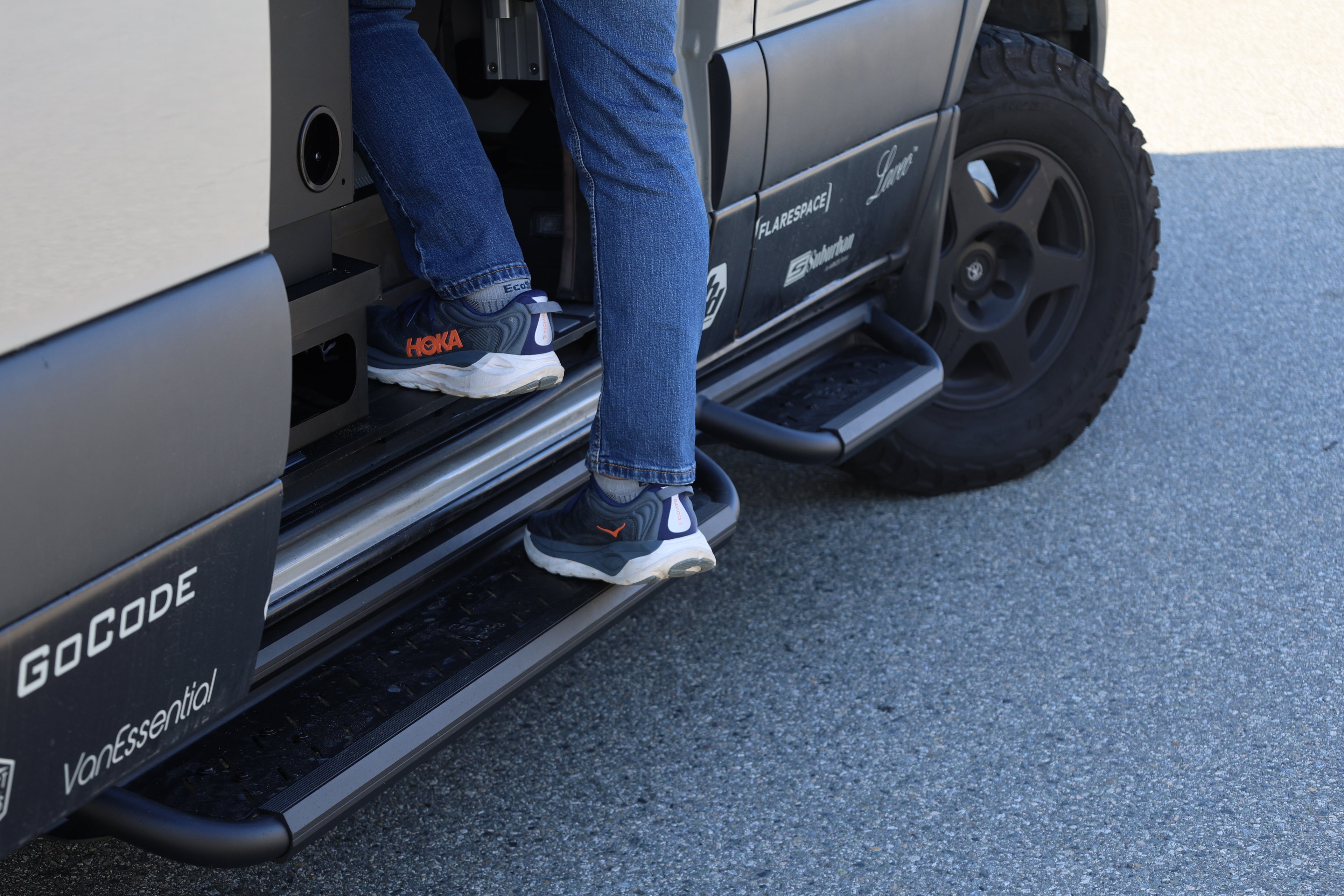

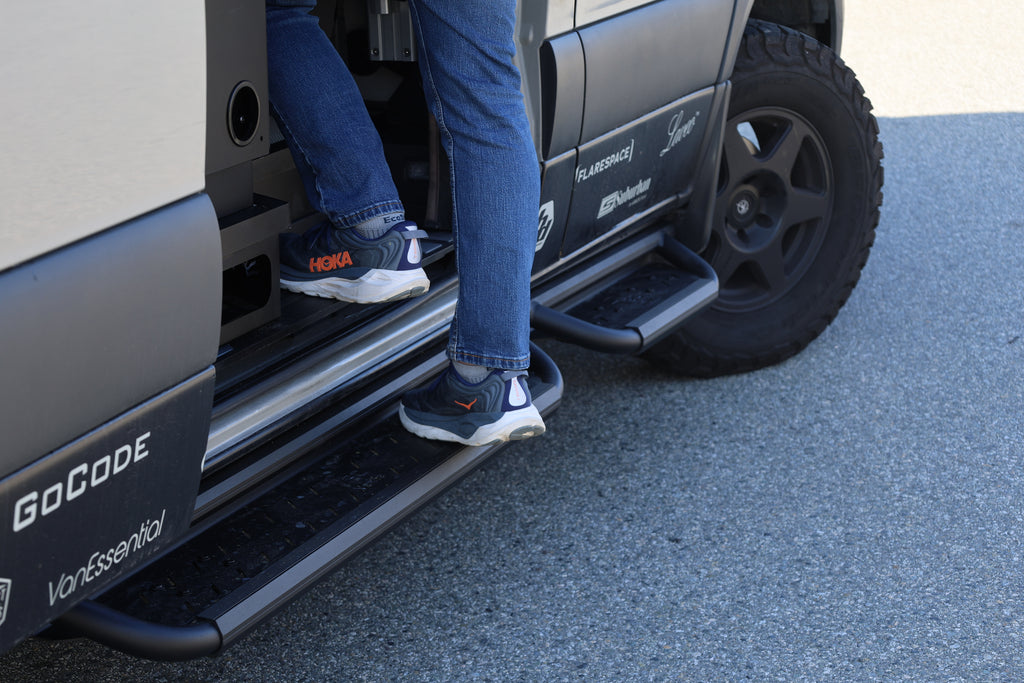

Hexagon tread: a textured stepping surface for entry and exit.
-
Lower stepping height: the published installation dimensions place the stepping surface approximately 3 inches below the body lip and the lowest part approximately 5 inches below it.
-
Clearance planning: these are lower steps, not a modification that increases ground clearance. Check the final installed position against your van and intended use.
-
Mounting components: required mounting brackets and hardware are included.
Published component specifications
Individual running-board sections
| Specification |
Front section |
Long section |
| Length |
33 in / 840 mm |
61.5 in / 1,560 mm |
| Width |
7.66 in / 195 mm |
7.66 in / 195 mm |
| Height |
5.75 in / 146 mm |
5.75 in / 146 mm |
| Weight |
7.32 lb / 3.32 kg |
15 lb / 6.8 kg |
The published load rating is approximately 400 lb per stepping area. Component dimensions are not the installed ground clearance of your vehicle.
Installation
The boards bolt through the bottom lip of the van body; the upper mounting brackets are riveted to the inner body panel. Light drilling is required. This is not a no-drill installation.
The existing installation estimate is approximately 2 hours for one person with suitable experience. Allow additional time for preparation and your specific van configuration. A drill, basic hand tools and the appropriate equipment for the supplied rivets are needed. Ask the team to confirm the current instructions and tool requirements before starting.
Before you order
- Confirm your model year, wheelbase, drivetrain and body configuration.
- Choose two front pieces or the three-piece set; these are different packages.
- Check nearby tanks, lifts, side skirts and other underbody accessories.
- Check availability for the selected configuration rather than assuming every kit is in stock.
Ask Tec Vanlife to check your running-board fitment. Include your model year, wheelbase and photos of any nearby accessories.
